Multi-Node Ray Serve on EKS¶

Deploy a single LLM across two GPU nodes with Ray Serve on Amazon EKS, using AWS DLCs. This sample demonstrates prefill/decode (PD) disaggregation: one node handles the prefill phase and the other handles decode, cooperating behind a single endpoint.

Ray is a distributed compute framework, so most Ray Serve deployments are multi-node by nature. Common patterns include tensor/pipeline parallelism (shard a model too big for one instance), data parallelism (replicate a model for throughput), and prefill/decode disaggregation (separating the two phases of inference onto different nodes).

What this sample builds¶

The scripts will deploy Qwen/Qwen3.5-9B in 2 g6.8xlarge worker nodes: one for prefill and one for decode. The prefill node builds the KV cache for the prompt and hands it to the decode node over NIXL, which generates the response, and that transfer rides EFA via NIXL's libfabric backend.

The ray-llm DLC ships vLLM, Ray Serve LLM, NIXL, and the EFA stack (libfabric and aws-ofi-nccl), and exposes an OpenAI-compatible API with no application code. The entire app in this sample is a block of YAML.

Architecture¶

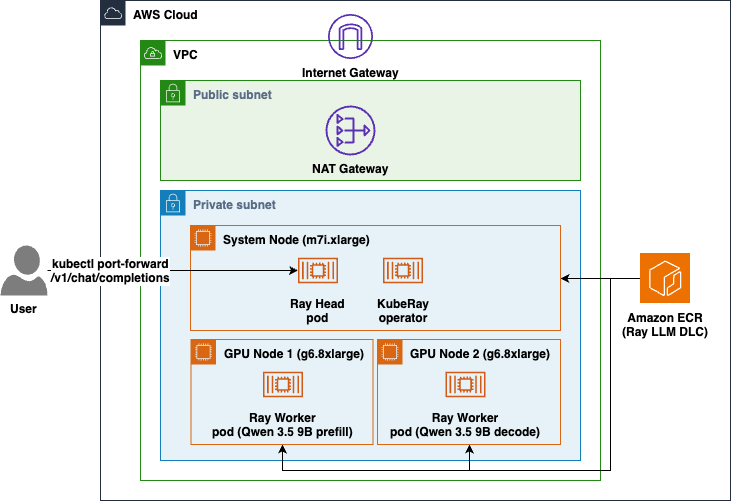

Multi-node Ray Serve architecture on EKS

Prerequisites¶

Install the following tools before running any scripts:

AWS CLI with credentials configured
eksctl
kubectl
helm to install the KubeRay operator
envsubst is used to render the manifest

Verify that your AWS credentials are active:

aws sts get-caller-identity

Directory Structure¶

ray-serve-multi-node/
      scripts/      # Deployment and teardown scripts for EKS, node group, KubeRay, and the RayService
      manifest/     # KubeRay RayService manifest: the entire application

Configuration¶

All scripts share a single configuration file: scripts/env.sh. Override any variable by exporting it before running a script.

Variable	Default	Description
CLUSTER_NAME	ray-llm-multinode	EKS cluster name
REGION	sa-east-1	AWS region
K8S_VERSION	1.35	Kubernetes version
SYSTEM_NODE_TYPE	m7i.xlarge	Instance type for system/head nodes
SYSTEM_NODE_COUNT	1	Number of system nodes
GPU_NODE_TYPE	g6.8xlarge	GPU worker instance type (smallest EFA-capable g6)
GPU_NODE_COUNT	2	Number of GPU nodes (prefill + decode)
GPU_NODEGROUP_NAME	gpu-workers	Name of the GPU node group
GPU_AZ	(auto)	AZ for the GPU node group; auto-discovered when empty
DLC_IMAGE	763104351884.dkr.ecr.${REGION}.amazonaws.com/ray:serve-llm-cuda-v1.0	Ray Serve LLM DLC image
KUBERAY_VERSION	1.4.0	KubeRay operator version
RAY_VERSION	2.58.0	Ray version
RAY_SERVICE_NAME	ray-llm	Name of the RayService
NAMESPACE	inference	Kubernetes namespace
MODEL_ID	qwen3.5-9b	Model id exposed on the API
MODEL_SOURCE	Qwen/Qwen3.5-9B	Hugging Face model source

Pre-Deployment setup¶

Step 1: Setup variables¶

Go to the root directory of the project. Then run this command:

CURRENT_DIR=$(pwd)

Step 2: Setup export variables¶

cd $CURRENT_DIR/ray-serve-multi-node/scripts
source ./env.sh

The application¶

There is no Python to write. The application is the serveConfigV2 block in manifest/rayservice.yaml. It uses build_pd_openai_app, which takes a prefill_config and a decode_config and wires the KV-cache transfer between them:

applications:
  - name: qwen
    import_path: ray.serve.llm:build_pd_openai_app   # OpenAI-compatible PD app, built in
    route_prefix: /
    args:
      prefill_config:
        model_loading_config: { model_id: qwen3.5-9b, model_source: Qwen/Qwen3.5-9B }
        engine_kwargs:
          max_model_len: 4096
          kv_transfer_config:
            kv_connector: NixlConnector
            kv_role: kv_both
            engine_id: prefill
            # Routes the transfer over EFA; without it NIXL uses UCX at TCP speed
            kv_connector_extra_config: { backends: ["LIBFABRIC"] }
        deployment_config: { num_replicas: 1 }
      decode_config:
        model_loading_config: { model_id: qwen3.5-9b, model_source: Qwen/Qwen3.5-9B }
        engine_kwargs:
          max_model_len: 4096
          kv_transfer_config:
            kv_connector: NixlConnector
            kv_role: kv_both
            engine_id: decode
            kv_connector_extra_config: { backends: ["LIBFABRIC"] }
        deployment_config: { num_replicas: 1 }

Ray Serve places the prefill and decode deployments on the two GPU workers, so the two phases run on two different nodes and exchange the KV cache over NIXL.

Step-by-step deployment¶

cd $CURRENT_DIR/ray-serve-multi-node/scripts

Step 1: Create the EKS cluster¶

./deploy_cluster.sh

Provisions the EKS cluster (VPC, OIDC, core add-ons) and a CPU system node group (m7i.xlarge) that runs system workloads, the KubeRay operator, and the Ray head. Nodes run in private subnets with outbound access through a NAT Gateway. Cluster subnets are placed in the Availability Zones that actually offer $GPU_NODE_TYPE, so the GPU node group always has a usable subnet. Idempotent: safe to re-run if interrupted. 15-20 minutes on a fresh run.

Step 2: Add GPU worker nodes¶

./deploy_node_group.sh

Creates the GPU node group: 2x g6.8xlarge with EFA enabled, pinned to a single AZ, labeled role=gpu-worker so the Ray workers target them via a nodeSelector. Runs in private subnets with no public IPs. Enabling EFA also makes eksctl install the EFA device plugin, which advertises vpc.amazonaws.com/efa on each node. 5-20 minutes, longer on a first run.

Step 3: Install the KubeRay operator¶

./install_kuberay.sh

Installs the KubeRay operator via Helm. KubeRay watches the RayService you apply next and wires the head-to-worker join automatically. Idempotent. 1-2 minutes.

Step 4: Deploy the RayService¶

./deploy_ray_service.sh

Renders manifest/rayservice.yaml with your image/model/naming variables and applies it. KubeRay creates the head and two worker pods, and Ray Serve LLM brings up the prefill and decode deployments. The script waits for the head to be Ready, both workers to be Running, and finally for the Serve app to report RUNNING. Because each node loads the model, expect several minutes here.

Check status¶

./deploy_ray_service.sh status

Shows the RayService state, the head + worker pods (with the node each landed on), and GPU capacity.

Invoke the model¶

Port-forward to the Serve endpoint. KubeRay creates a stable <rayservice-name>-serve-svc Service once the Serve app is healthy:

kubectl port-forward -n inference svc/ray-llm-serve-svc 8000:8000

List models:

curl --silent http://127.0.0.1:8000/v1/models

Chat completion:

curl --fail --silent --show-error \
  --request POST "http://127.0.0.1:8000/v1/chat/completions" \
  --header "Content-Type: application/json" \
  --data '{
    "model": "qwen3.5-9b",
    "messages": [
      {"role": "user", "content": "Explain the benefits of prefill/decode disaggregation."}
    ],
    "max_tokens": 200,
    "temperature": 0.7
  }'

Verify EFA is being used¶

NIXL falls back to a TCP-speed transport if it cannot use libfabric, without raising an error, so confirm the backend it picked:

for POD in $(kubectl get pods -n inference -l ray.io/node-type=worker \
             -o jsonpath='{.items[*].metadata.name}'); do
  kubectl exec -n inference "$POD" -c ray-worker -- \
    grep -rhoE "Backend (LIBFABRIC|UCX) was instantiated" /tmp/ray/session_latest/logs/ 2>/dev/null
done | sort | uniq -c

deploy_node_group.sh already prints the vpc.amazonaws.com/efa count per node when it creates the group. For a cross-node bandwidth number, the DLC ships a prebuilt NCCL benchmark at /usr/local/bin/all_reduce_perf.

Teardown (reverse order)¶

cd $CURRENT_DIR/ray-serve-multi-node/scripts

Delete the RayService¶

./delete_ray_service.sh

Uninstall the KubeRay operator¶

./install_kuberay.sh cleanup

Delete the GPU node group¶

./delete_node_group.sh

Delete the EKS cluster¶

./delete_cluster.sh

Scripts Quick Reference¶

Action	Command
Deploy cluster	`./deploy_cluster.sh`
Deploy GPU nodes	`./deploy_node_group.sh`
Install KubeRay	`./install_kuberay.sh`
Deploy RayService	`./deploy_ray_service.sh`
Check status	`./deploy_ray_service.sh status`
Delete RayService	`./delete_ray_service.sh`
Uninstall KubeRay	`./install_kuberay.sh cleanup`
Delete GPU nodes	`./delete_node_group.sh`
Delete EKS cluster	`./delete_cluster.sh`
