Construct Overview

DataZone L3 CDK Construct is used to configure and deploy DataZone Domains.

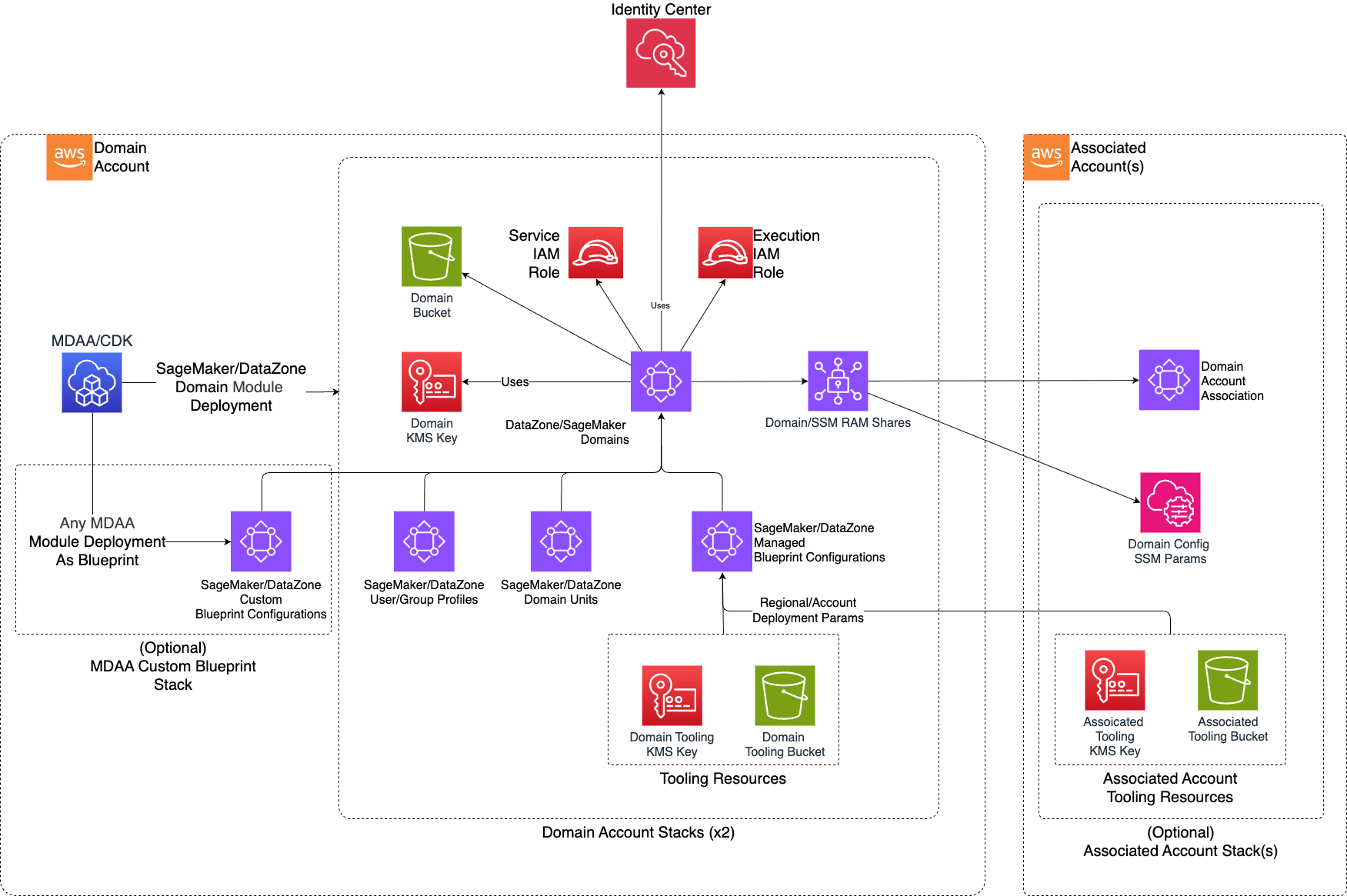

Deployed Resources

• DataZone Domain - A DataZone Domain

• KMS CMK - A KMS CMK specific to each domain created

• Domain Execution Role - An IAM Role used by DataZone. This role is specific to the domain.

• Domain Provisioning Role - An IAM Role specific to the domain deployed only when at least one blueprint is enabled. This role is used and shared among all the enabled blueprints.

• Data Lake Blueprint - Data Lake Blueprint (id: DefaultDataLake) specific to each domain.

• Data Lake Manage Access Role - An IAM Role used by the Data Lake Blueprint and it's specific to each domain.

• Data Warehouse Blueprint - Data Warehouse Blueprint (id: DefaultDataWarehouse) specific to each domain.

• Data Warehouse Manage Access Role - An IAM Role use by the Data Warehouse blueprint and it's specific to each domain.

• Authorization Policy Grants - Fine-grained authorization policies applied to domain units that control user and role permissions. Supports policy types including CREATE_DOMAIN_UNIT, CREATE_GLOSSARY, CREATE_PROJECT, and others. Principals can be either IAM users (user: username) or IAM roles (role: rolename) depending on how they're defined in the domain configuration.

DataZone Personas

The DataZone construct supports authorization policies with the following key policy types:

• CREATE_DOMAIN_UNIT - Enables creation of new domain units within the hierarchy
• CREATE_GLOSSARY - Allows creation of business glossaries for data governance
• CREATE_PROJECT - Permits creation of data projects within domain units

Authorization policies use principals that must match the domain user configuration:

• Use role: rolename for IAM roles defined in the domain users section
• Use user: username for IAM users or SSO users defined in the domain users section
