awsiotsdk::Action Class Reference

Action Class. More...

#include <Action.hpp>

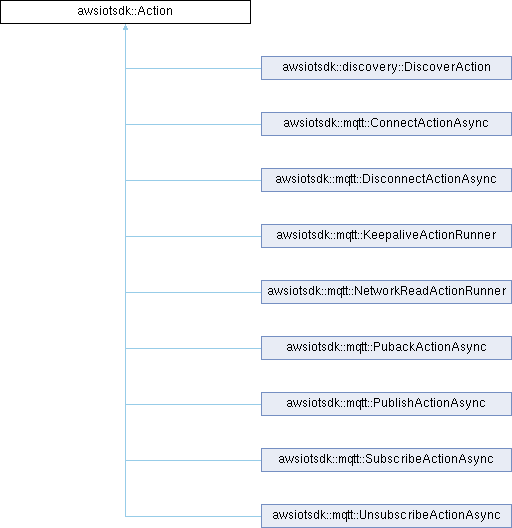

Inheritance diagram for awsiotsdk::Action:

Public Types
typedef std::function< std::unique_ptr< Action >(std::shared_ptr< ActionState > p_action_state)>	CreateHandlerPtr

Public Member Functions
ActionType	GetActionType ()
	Get Type of this Action. More...
util::String	GetActionInfo ()
	Get information/description about the current action. More...
void	SetParentThreadSync (std::shared_ptr< std::atomic_bool > p_thread_continue)
	Sets the parent thread sync variable. More...
virtual ResponseCode	PerformAction (std::shared_ptr< NetworkConnection > p_network_connection, std::shared_ptr< ActionData > p_action_data)=0
	Virtual base function for Performing Action. More...
	Action (const Action &)=delete
	Action (Action &&)=delete
Action &	operator= (const Action &) &=delete
Action &	operator= (Action &&) &=delete
	Action (ActionType action_type, util::String action_info_string)
	Action Constructor. More...

Protected Member Functions
ResponseCode	ReadFromNetworkBuffer (std::shared_ptr< NetworkConnection > p_network_connection, util::Vector< unsigned char > &read_buf, size_t bytes_to_read)
	Generic Network Read function for all actions. More...
ResponseCode	WriteToNetworkBuffer (std::shared_ptr< NetworkConnection > p_network_connection, const util::String &write_buf)
	Generic Network Write function for all actions. More...

Protected Attributes
ActionType	action_type_
	Type of the action.
util::String	action_info_string_
	Info string.
std::shared_ptr< std::atomic_bool >	p_thread_continue_
	Shared atomic variable used for sync when action is run in separate thread.

Detailed Description

Defines a base class for SDK Actions. Provides basic template for concrete implementations. Also includes code for Thread sync with client core. All Actions that can be performed by the Client Core must inherit from this class. This is a pure virtual class and cannot be instantiated

Member Typedef Documentation

CreateHandlerPtr

typedef std::function<std::unique_ptr<Action>(std::shared_ptr<ActionState> p_action_state)> awsiotsdk::Action::CreateHandlerPtr

Define a type for Create Factory method. Takes Action state as argument and returns a unique_ptr to a new action instance

Constructor & Destructor Documentation

Action()

awsiotsdk::Action::Action	(	ActionType	action_type,
		util::String	action_info_string
	)

Parameters

action_type	- Type fo the Action being instantiated
action_info_string	- Info string describing the action

Member Function Documentation

GetActionInfo()

util::String awsiotsdk::Action::GetActionInfo ( )

inline

Gets runtime information about the currently running Action if it was set when the action was created

Returns

String containing Info Text

GetActionType()

ActionType awsiotsdk::Action::GetActionType ( )

inline

Returns

ActionType

PerformAction()

virtual ResponseCode awsiotsdk::Action::PerformAction ( std::shared_ptr< NetworkConnection >  p_network_connection, std::shared_ptr< ActionData >  p_action_data  )

pure virtual

This function is called by Client Core and defines how the Action is Performed. This is a pure virtual function. Inherited classes MUST implement this.

Parameters

p_network_connection	- Network connection to be used to perform the Action
p_action_data	- Action data to be used for this run of the action

Returns

ResponseCode indicating result of the API call

Implemented in awsiotsdk::discovery::DiscoverAction, awsiotsdk::mqtt::ConnectActionAsync, awsiotsdk::mqtt::DisconnectActionAsync, awsiotsdk::mqtt::KeepaliveActionRunner, awsiotsdk::mqtt::NetworkReadActionRunner, awsiotsdk::mqtt::PublishActionAsync, awsiotsdk::mqtt::PubackActionAsync, awsiotsdk::mqtt::SubscribeActionAsync, and awsiotsdk::mqtt::UnsubscribeActionAsync.

ReadFromNetworkBuffer()

ResponseCode awsiotsdk::Action::ReadFromNetworkBuffer ( std::shared_ptr< NetworkConnection >  p_network_connection, util::Vector< unsigned char > &  read_buf, size_t  bytes_to_read  )

protected

Parameters

p_network_connection	- Network connection to be used to perform Read
read_buf	- Buffer read data should be copied to. Assumed to already have enough memory reserved
bytes_to_read	- Number of bytes to read

Returns

ResponeCode indicating result of the API call

SetParentThreadSync()

void awsiotsdk::Action::SetParentThreadSync ( std::shared_ptr< std::atomic_bool >  p_thread_continue )

inline

Parameters

p_thread_continue

- Pointer to the new sync variable to use

WriteToNetworkBuffer()

ResponseCode awsiotsdk::Action::WriteToNetworkBuffer ( std::shared_ptr< NetworkConnection >  p_network_connection, const util::String &  write_buf  )

protected

Parameters

p_network_connection	- Network connection to be used to perform Write
read_buf	- Buffer containing data to be written to the network instance

Returns

ResponeCode indicating result of the API call
