ota_mqtt_private.h File Reference

Contains function definitions of routines for OTA download and control using MQTT data plane. More...

#include "ota.h"
#include "ota_private.h"

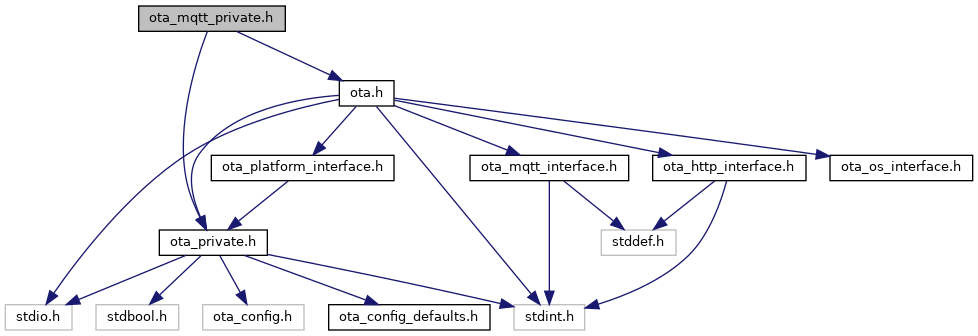

Include dependency graph for ota_mqtt_private.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
OtaErr_t	requestJob_Mqtt (const OtaAgentContext_t *pAgentCtx)
	Check for available OTA job over MQTT. More...
OtaErr_t	initFileTransfer_Mqtt (const OtaAgentContext_t *pAgentCtx)
	Initialize file transfer over MQTT. More...
OtaErr_t	requestFileBlock_Mqtt (OtaAgentContext_t *pAgentCtx)
	Request File block over MQTT. More...
OtaErr_t	decodeFileBlock_Mqtt (const uint8_t *pMessageBuffer, size_t messageSize, int32_t *pFileId, int32_t *pBlockId, int32_t *pBlockSize, uint8_t *const *pPayload, size_t *pPayloadSize)
	Decode a cbor encoded fileblock. More...
OtaErr_t	cleanupControl_Mqtt (const OtaAgentContext_t *pAgentCtx)
	Cleanup related to OTA control plane over MQTT. More...
OtaErr_t	cleanupData_Mqtt (const OtaAgentContext_t *pAgentCtx)
	Cleanup related to OTA data plane over MQTT. More...
OtaErr_t	updateJobStatus_Mqtt (const OtaAgentContext_t *pAgentCtx, OtaJobStatus_t status, int32_t reason, int32_t subReason)
	Update job status over MQTT. More...
const char *	OTA_MQTT_strerror (OtaMqttStatus_t status)
	Status to string conversion for OTA MQTT interface status. More...

Detailed Description

Contains function definitions of routines for OTA download and control using MQTT data plane.

Function Documentation

requestJob_Mqtt()

OtaErr_t requestJob_Mqtt

(

const OtaAgentContext_t *

pAgentCtx

)

Check for available OTA job over MQTT.

This function Request for the next available OTA job from the job service by publishing a "get next job" message to the job service.

Parameters

[in]

pAgentCtx

The OTA agent context.

Returns

The OTA error code. See OTA Agent error codes information in ota.h.

initFileTransfer_Mqtt()

OtaErr_t initFileTransfer_Mqtt

(

const OtaAgentContext_t *

pAgentCtx

)

Initialize file transfer over MQTT.

This function initializes the file transfer after the OTA job is parsed and accepted by subscribing to the data streaming topics.

Parameters

[in]

pAgentCtx

The OTA agent context.

Returns

The OTA error code. See OTA Agent error codes information in ota.h.

< Buffer to store the topic generated for requesting data stream.

requestFileBlock_Mqtt()

OtaErr_t requestFileBlock_Mqtt

(

OtaAgentContext_t *

pAgentCtx

)

Request File block over MQTT.

This function is used for requesting a file block over MQTT using the file context.

Parameters

[in]

pAgentCtx

The OTA agent context.

Returns

The OTA PAL layer error code combined with the MCU specific error code. See OTA Agent error codes information in ota.h.

decodeFileBlock_Mqtt()

OtaErr_t decodeFileBlock_Mqtt	(	const uint8_t *	pMessageBuffer,
		size_t	messageSize,
		int32_t *	pFileId,
		int32_t *	pBlockId,
		int32_t *	pBlockSize,
		uint8_t *const *	pPayload,
		size_t *	pPayloadSize
	)

Decode a cbor encoded fileblock.

This function is used for decoding a file block received over MQTT & encoded in cbor.

Parameters

[in]	pMessageBuffer	The message to be decoded.
[in]	messageSize	The size of the message in bytes.
[out]	pFileId	The server file ID.
[out]	pBlockId	The file block ID.
[out]	pBlockSize	The file block size.
[out]	pPayload	The payload.
[out]	pPayloadSize	The payload size.

Returns

The OTA PAL layer error code combined with the MCU specific error code. See OTA Agent error codes information in ota.h.

cleanupControl_Mqtt()

OtaErr_t cleanupControl_Mqtt

(

const OtaAgentContext_t *

pAgentCtx

)

Cleanup related to OTA control plane over MQTT.

This function cleanup by unsubscribing from any topics that were subscribed for performing OTA over MQTT.

Parameters

[in]

pAgentCtx

The OTA agent context.

Returns

The OTA error code. See OTA Agent error codes information in ota.h.

cleanupData_Mqtt()

OtaErr_t cleanupData_Mqtt

(

const OtaAgentContext_t *

pAgentCtx

)

Cleanup related to OTA data plane over MQTT.

This function performs cleanup by unsubscribing from any topics that were subscribed for performing OTA data over MQTT.

Parameters

[in]

pAgentCtx

The OTA agent context.

Returns

The OTA error code. See OTA Agent error codes information in ota.h.

updateJobStatus_Mqtt()

OtaErr_t updateJobStatus_Mqtt	(	const OtaAgentContext_t *	pAgentCtx,
		OtaJobStatus_t	status,
		int32_t	reason,
		int32_t	subReason
	)

Update job status over MQTT.

This function updates the OTA job status over MQTT with information like in progress, completion or failure.

Parameters

[in]	pAgentCtx	The OTA agent context.
[in]	status	The OTA job status which should be updated.

See also

OtaJobStatus_t.

Parameters

[in]	reason	The major reason for the status update.
[in]	subReason	The platform specific reason.

Returns

The OTA error code. See OTA Agent error codes information in ota.h.

OTA_MQTT_strerror()

const char * OTA_MQTT_strerror

(

OtaMqttStatus_t

status

)

Status to string conversion for OTA MQTT interface status.

Parameters

[in]

status

The status to convert to a string.

Returns

The string representation of the status.
