EMR Kerberos Cluster Startup Flow for KDC with One-Way Trust

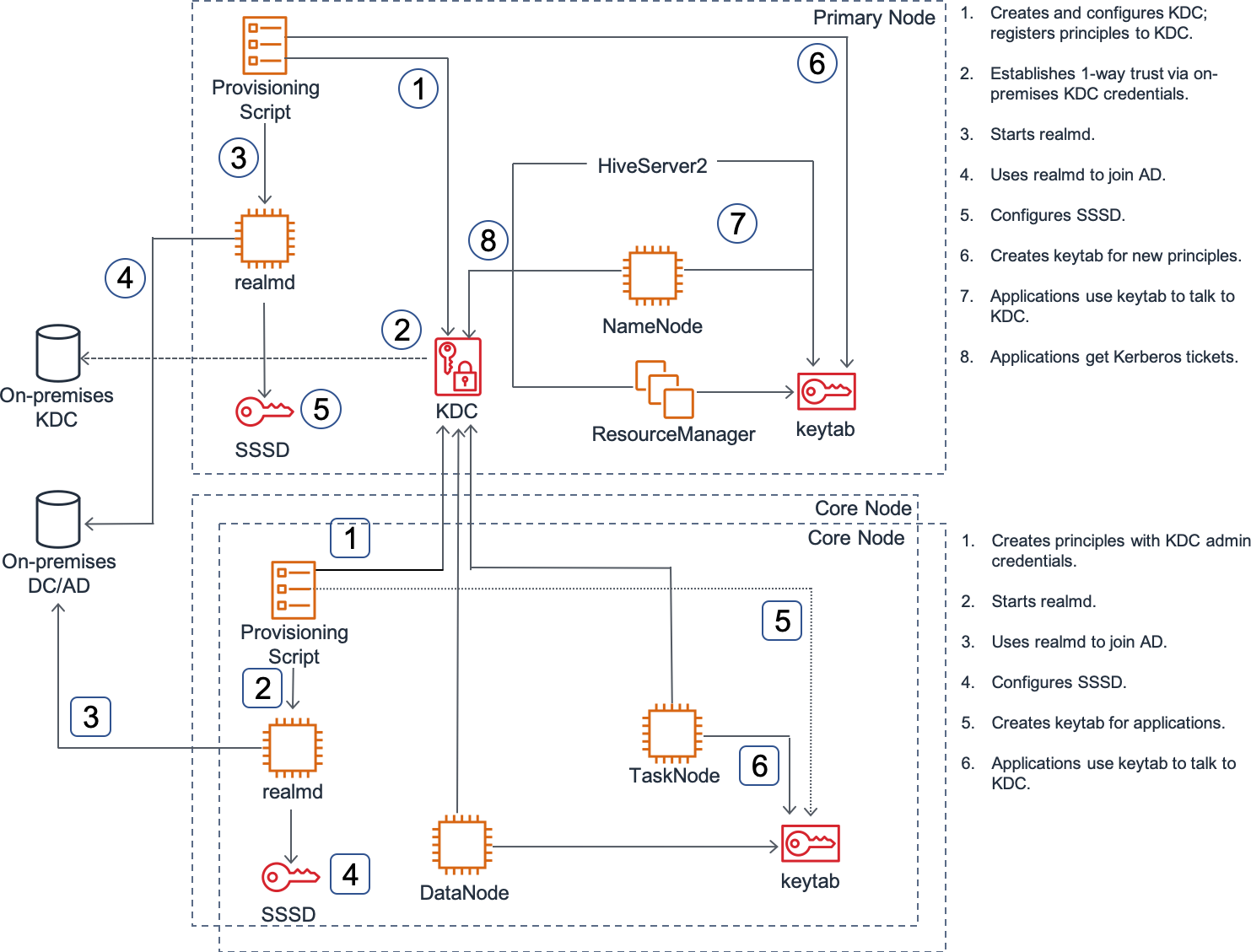

Figure 50: EMR Kerberos Cluster Startup Flow for KDC with One-Way Trust

During EMR cluster provisioning, each node runs a provisioning script that performs the following steps:

  • Primary node only Creates the KDC and configures it for one-way trust.

  • All nodes Starts realmd to join Active Directory, which in turn configures SSSD for user and group mapping and generates the node's keytab.

  • All nodes Creates application principals and keytabs for each application and sub-application.

When a new node joins the cluster, its provisioning script performs the same operations: it creates principals in the KDC on the primary node for all locally running applications, generates the keytab file, joins Active Directory (if configured), and starts the applications.
