IAM Roles and Policies

Note: This documentation is also available in a rendered format here.

Deploys IAM roles, customer-managed policies, and SAML federation providers for a governed data environment. Supports persona-based policy assignment (data-admin, data-engineer, data-scientist, data-steward), multiple trust principal types, and CDK Nag suppression management. Use this module when you need to create IAM roles for your data teams that can be referenced across other MDAA modules for consistent, persona-based access control.

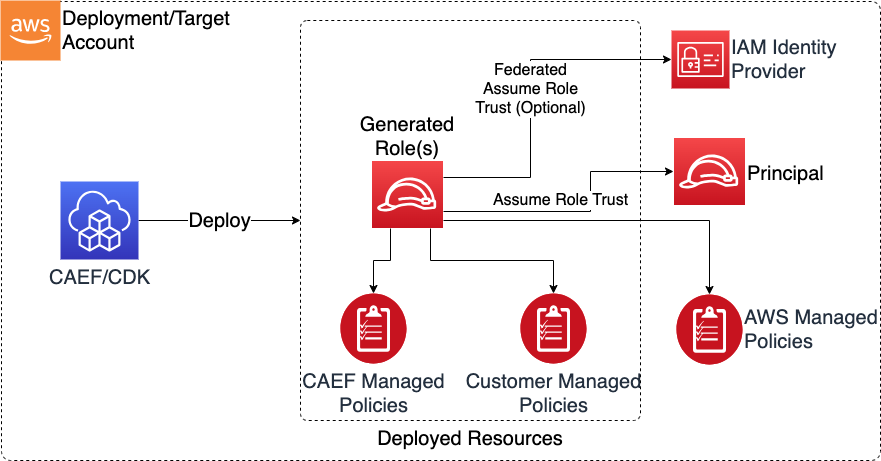

Deployed Resources

This module deploys and integrates the following resources:

IAM Managed Policies - Customer-managed policies created from config-defined policy documents. MDAA persona-based managed policies optionally created for attachment to roles. Policies violating CDK Nag rules require explicit suppressions.

IAM Roles - Roles with configurable trust policies supporting account root, service principals, SAML federation, cross-account role ARNs, and assume role conditions. Roles can specify a base persona for automatic policy attachment.

IAM Identity (Federation) Providers - SAML identity providers for establishing federated assume-role trust into generated roles. New providers created from SAML metadata XML documents.

SSM Parameters - Role ARN and Role ID stored in Parameter Store for each generated role, enabling cross-module reference via generated-role-id: shorthand.

Roles

Data Lake — Roles created here can be referenced as data admin, read, write, or super roles on data lake buckets
Athena Workgroup — Roles can be referenced as data admin or user roles for workgroup access
DataOps Project — Roles can be referenced as data engineer, execution, or data admin roles for project resources
Data Warehouse — Roles can be used as execution roles or federation roles for Redshift access
Data Science Team — Roles can be referenced as team user or data admin roles for SageMaker and Athena access
Lake Formation Access Control — Roles can be used as principals for Lake Formation fine-grained access grants
SageMaker Studio — Roles can be referenced as data admin roles or custom execution roles for Studio domains
QuickSight Namespace — Roles can be used for SAML federation into QuickSight namespaces

Security/Compliance Details

This module is designed in alignment with MDAA security/compliance principles and CDK nag rulesets. Additional review is recommended prior to production deployment, ensuring organization-specific compliance requirements are met.

Least Privilege:
- Roles follow least-privilege principles with explicit trust policies
- Persona-based managed policies provide standardized permission sets
- CDK Nag integration validates security best practices with required suppressions for exceptions
Separation of Duties:
- Permission boundaries and CDK Nag rules help guide roles toward organizational security standards
- SAML federation enables SSO integration with existing identity providers

Configuration

MDAA Config

Add the following snippet to your mdaa.yaml under the modules: section of a domain/env in order to use this module:

roles: # Module Name can be customized
  module_path: '@aws-mdaa/roles' # Must match module NPM package name
  module_configs:
    - ./roles.yaml # Filename/path can be customized

Module Config Samples and Variants

Copy the contents of the relevant sample config below into the ./roles.yaml file referenced in the MDAA config snippet above.

Minimal Configuration

Creates a single IAM role with account-level trust. All properties are optional, but at least one role is recommended for a useful deployment. Start here for a basic role that other MDAA modules can reference.

sample-config-minimal.yaml

# Contents available via above link
# Minimal Roles module configuration.
# Creates a single IAM role with account-level trust. All
# properties are optional but at least one role is recommended
# for a useful deployment.

# (Optional) Map of named IAM roles to generate.
generateRoles:
  # Basic role trusted by the current account
  my-role:
    # Primary trusted principal for the role's trust policy
    trustedPrincipal: this_account

Comprehensive Configuration

Generates IAM roles, customer-managed policies, and SAML federation providers with persona-based policy assignment (data-admin, data-engineer, data-scientist), multiple trust principal types, and CDK Nag suppression management. Start here when evaluating all available options for personas, trust policies, SAML federation, and custom managed policies.

sample-config-comprehensive.yaml

# Contents available via above link
# Sample config for the Roles module.
# Generates IAM roles, customer-managed policies, and SAML federation
# providers. Supports persona-based policy assignment (data-admin,
# data-engineer, data-scientist), multiple trust principal types,
# and CDK Nag suppression management.

# (Optional) If true (default), creates a set of MDAA persona-based
# managed policies for predefined personas (data-admin,
# data-engineer, data-scientist). Set to false to skip persona
# policy creation.
createPersonaManagedPolicies: true

# (Optional) Map of named federation configurations for SAML
# identity provider integration. Each entry either references an
# existing IAM SAML provider or creates a new one from a metadata
# document. Federation names are used in role trust policies via
# the "federation:<name>" principal format.
federations:
  # Reference an existing SAML identity provider by ARN
  example-federation:
    # ARN of an existing IAM SAML identity provider. Mutually
    # exclusive with samlDoc.
    providerArn: arn:{{partition}}:iam::{{account}}:saml-provider/ExampleIdentityProvider

  # Create a new SAML identity provider from a metadata document
  new-federation:
    # Path to a SAML metadata XML document used to create a new
    # IAM SAML provider. Relative paths should be prefixed with
    # "./". Mutually exclusive with providerArn.
    samlDoc: ./saml-doc.xml

# (Optional) Map of named customer-managed policies to generate.
# Each policy defines an IAM policy document and optional CDK Nag
# suppressions. Policy names are referenced by roles via the
# generatedPolicies property.
generatePolicies:
  # Policy name used as a reference in role definitions. By
  # default, MDAA naming prefixes are applied to the final
  # policy name.
  TestPolicy:
    # (Required) IAM policy document with Statement array
    policyDocument:
      Statement:
        - SID: testing
          Effect: Allow
          Resource:
            - 'arn:{{partition}}:s3:::*'
          Action:
            - s3:List*
            - s3:GetBucket*
    # (Optional) CDK Nag suppressions for rules triggered by this
    # policy. Each entry requires a rule id and justification.
    suppressions:
      - id: 'AwsSolutions-IAM5'
        reason: 'Wildcard testing ok!'

  # Example policy with verbatim naming (no MDAA prefix)
  TestPolicyVerbatim:
    # (Optional) When true, uses the exact policy name without
    # MDAA naming prefixes. (default: false)
    verbatimPolicyName: true
    policyDocument:
      Statement:
        - SID: testing
          Effect: Allow
          Resource:
            - 'arn:{{partition}}:s3:::*'
          Action:
            - s3:List*
            - s3:GetBucket*
    suppressions:
      - id: 'AwsSolutions-IAM5'
        reason: 'Wildcard testing ok!'

# (Optional) Map of named IAM roles to generate. Each role defines
# trust policies, managed policy attachments, and optional CDK Nag
# suppressions. Role names are used as identifiers and SSM
# parameter paths.
generateRoles:
  # ----------------------------------------------------------------
  # Persona-based role example
  # ----------------------------------------------------------------
  # Role with a base persona for automatic MDAA policy attachment.
  # Personas provide standardized permission sets.
  my-data-admin:
    # (Required) Primary trusted principal for the role's trust
    # policy. Supported formats:
    #   - "this_account": Trust IAM root of the current account
    #   - "service:<svc>.amazonaws.com": Trust an AWS service
    #   - "federation:<name>": Trust a SAML federation from config
    #   - "account:<account-id>": Trust another AWS account
    #   - "arn:...": Trust a specific IAM role/user ARN
    trustedPrincipal: this_account
    # (Optional) Base persona for automatic MDAA managed policy
    # attachment. Valid values: data-admin, data-engineer,
    # data-scientist. Requires createPersonaManagedPolicies: true.
    basePersona: data-admin
    # (Optional) Names of policies from generatePolicies to attach
    generatedPolicies:
      - TestPolicy

  # ----------------------------------------------------------------
  # Persona-based role: data-engineer
  # ----------------------------------------------------------------
  # Demonstrates the data-engineer basePersona enum value
  my-data-engineer:
    trustedPrincipal: this_account
    # basePersona enum value: data-engineer
    basePersona: data-engineer

  # ----------------------------------------------------------------
  # Persona-based role: data-scientist
  # ----------------------------------------------------------------
  # Demonstrates the data-scientist basePersona enum value
  my-data-scientist:
    trustedPrincipal: this_account
    # basePersona enum value: data-scientist
    basePersona: data-scientist

  # ----------------------------------------------------------------
  # Basic role with AWS managed policy
  # ----------------------------------------------------------------
  test-role:
    trustedPrincipal: this_account
    # (Optional) Additional STS actions the primary trusted principal
    # can perform beyond the default assume role action. Common use
    # case: allowing sts:TagSession for callers with principal tags
    # (e.g. OIDC federation, ABAC policies).
    additionalTrustedActions:
      - 'sts:TagSession'
    # (Optional) AWS managed policy names to attach. Use the policy
    # path as shown in IAM console (e.g. "service-role/PolicyName")
    awsManagedPolicies:
      - service-role/AWSLambdaBasicExecutionRole
    generatedPolicies:
      - TestPolicy
    # (Optional) CDK Nag suppressions for rules triggered by this
    # role configuration
    suppressions:
      - id: 'AwsSolutions-IAM4'
        reason: 'AWSLambdaBasicExecutionRole approved for use'

  # ----------------------------------------------------------------
  # Role with verbatim naming (no MDAA prefix)
  # ----------------------------------------------------------------
  test-role-verbatim:
    # (Optional) When true, uses the exact role name without MDAA
    # naming prefixes. Useful for integration with external systems
    # expecting specific role names. (default: false)
    verbatimRoleName: true
    trustedPrincipal: this_account
    awsManagedPolicies:
      - service-role/AWSLambdaBasicExecutionRole
    generatedPolicies:
      - TestPolicy
    suppressions:
      - id: 'AwsSolutions-IAM4'
        reason: 'AWSLambdaBasicExecutionRole approved for use'

  # ----------------------------------------------------------------
  # Service role example (Glue)
  # ----------------------------------------------------------------
  glue-role:
    # Trust the Glue service to assume this role
    trustedPrincipal: service:glue.amazonaws.com
    awsManagedPolicies:
      - service-role/AWSGlueServiceRole
    suppressions:
      - id: 'AwsSolutions-IAM4'
        reason: 'AWSGlueServiceRole approved for use'

  # ----------------------------------------------------------------
  # Federated role examples (SAML)
  # ----------------------------------------------------------------
  # Role assumable via existing SAML federation
  data-scientist:
    # Reference a federation defined in the federations section
    trustedPrincipal: federation:example-federation
    generatedPolicies:
      - TestPolicy

  # Role assumable via new SAML federation (created from samlDoc)
  data-engineer:
    trustedPrincipal: federation:new-federation
    generatedPolicies:
      - TestPolicy

  # ----------------------------------------------------------------
  # Service role without additional policies
  # ----------------------------------------------------------------
  lakeformation:
    trustedPrincipal: service:lakeformation.amazonaws.com

  # ----------------------------------------------------------------
  # Role with existing customer-managed policies
  # ----------------------------------------------------------------
  # Role that attaches pre-existing customer-managed policies
  # (policies not defined in generatePolicies)
  role-with-existing-policies:
    trustedPrincipal: this_account
    # (Optional) Names of existing customer-managed policies to
    # attach. These must already exist in the account.
    customerManagedPolicies:
      - MyExistingPolicy
      - AnotherExistingPolicy

  # ----------------------------------------------------------------
  # Cross-account/cross-role trust examples
  # ----------------------------------------------------------------
  # Role assumable by a specific IAM role ARN (direct trust)
  application_data_role1:
    # Trust a specific role ARN directly
    trustedPrincipal: arn:{{partition}}:iam::{{account}}:role/test-application-role
    generatedPolicies:
      - TestPolicy

  # Role with conditional trust (more restrictive)
  application_data_role2:
    trustedPrincipal: this_account
    # (Optional) IAM conditions for the assume role trust policy.
    # Provides context-aware access restrictions beyond the
    # principal. Common conditions: StringEquals, StringLike,
    # ArnEquals, IpAddress, etc.
    assumeRoleTrustConditions:
      StringEquals:
        aws:PrincipalArn: arn:{{partition}}:iam::{{account}}:role/test-application-role
    generatedPolicies:
      - TestPolicy

  # ----------------------------------------------------------------
  # Multi-service trust with additional STS actions
  # ----------------------------------------------------------------
  # Role assumable by multiple services with extended trust actions
  multiple_service_role:
    trustedPrincipal: service:sagemaker.amazonaws.com
    # (Optional) Additional principals that can assume this role
    # beyond the primary. Each can specify additional trusted
    # actions (e.g. sts:SetSourceIdentity for identity propagation)
    additionalTrustedPrincipals:
      - trustedPrincipal: service:sagemaker.amazonaws.com
        # (Optional) Additional STS actions beyond sts:AssumeRole
        additionalTrustedActions: ['sts:SetSourceIdentity']
      - trustedPrincipal: service:elasticmapreduce.amazonaws.com
        additionalTrustedActions: ['sts:SetSourceIdentity']
      # Additional principal without additionalTrustedActions
      # (only trustedPrincipal is required)
      - trustedPrincipal: service:glue.amazonaws.com
    generatedPolicies:
      - TestPolicy

Config Schema Docs
