EC2

Note: This documentation is also available in a rendered format here.

Deploys secure EC2 instances with KMS-encrypted EBS volumes, managed key pairs stored in Secrets Manager, configurable security groups, and CloudFormation Init bootstrap configurations for both Linux and Windows. Common scenarios include deploying bastion hosts, DataSync agents, database clients, or other utility compute that your data environment requires within a VPC.

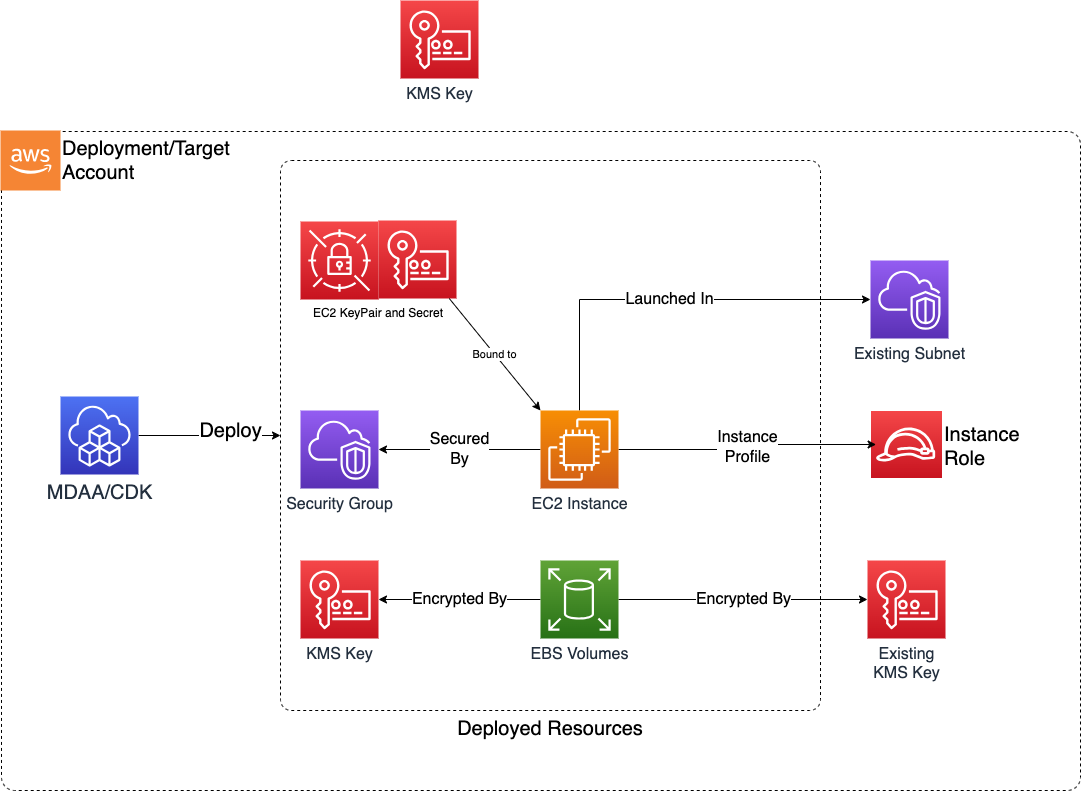

Deployed Resources

This module deploys and integrates the following resources:

KMS CMK: Customer-managed KMS key created if an existing key is not provided. Used to encrypt instance EBS volumes and key pair secrets.
EC2 Key Pairs: Created for use by EC2 instances, with private key material stored in Secrets Manager. Key pairs and secrets are retained post stack deletion.
EC2 Security Groups: Controls network access for instances. Supports CIDR, prefix list, and security group-based rules.
EC2 Instances: Instances with termination protection enabled and retained post stack deletion. AMI-configured volumes should be accounted for in config to support encryption.
CloudFormation Init: Bootstrap configurations for package installation, file creation, command execution, and service management on both Linux and Windows instances.

ec2

Roles — Create IAM roles for EC2 instance profiles
DataSync — Deploy DataSync agents on EC2 instances for data transfer

Security/Compliance Details

This module is designed in alignment with MDAA security/compliance principles and CDK nag rulesets. Additional review is recommended prior to production deployment, ensuring organization-specific compliance requirements are met.

Encryption at Rest:
- All EBS volumes encrypted with customer-managed KMS key
- Key pair private keys encrypted in Secrets Manager with the same KMS key
Least Privilege:
- Admin roles granted scoped KMS key admin/usage permissions and Secrets Manager access for key pair retrieval
- Instance profiles use dedicated IAM roles
Data Protection:
- Termination protection enabled by default
- Key pairs and secrets retained post stack deletion
Network Isolation:
- Security groups deny all ingress by default
- All egress allowed by default (configurable)
- Egress rules configurable with CIDR, prefix list, and security group targets

AWS Service Endpoints

The following VPC endpoints may be required if public AWS service endpoint connectivity is unavailable (e.g., private subnets without NAT gateway, firewalled environments, or PrivateLink-only architectures):

AWS Service	Endpoint Service Name	Type
EC2	`com.amazonaws.{region}.ec2`	Interface
EC2 Messages	`com.amazonaws.{region}.ec2messages`	Interface
KMS	`com.amazonaws.{region}.kms`	Interface
Secrets Manager	`com.amazonaws.{region}.secretsmanager`	Interface
CloudWatch Logs	`com.amazonaws.{region}.logs`	Interface
STS	`com.amazonaws.{region}.sts`	Interface
SSM	`com.amazonaws.{region}.ssm`	Interface
SSM Messages	`com.amazonaws.{region}.ssmmessages`	Interface
S3	`com.amazonaws.{region}.s3`	Gateway

Configuration

MDAA Config

Add the following snippet to your mdaa.yaml under the modules: section of a domain/env in order to use this module:

ec2: # Module Name can be customized
  module_path: '@aws-mdaa/ec2' # Must match module NPM package name
  module_configs:
    - ./ec2.yaml # Filename/path can be customized

Module Config Samples and Variants

Copy the contents of the relevant sample config below into the ./ec2.yaml file referenced in the MDAA config snippet above.

Minimal Configuration

Deploys a single EC2 instance with a security group. Start here for a basic instance deployment with default encryption and termination protection.

sample-config-minimal.yaml

# Contents available via above link
# Minimal EC2 module configuration.
# Deploys a single EC2 instance with a security group.

# See CONFIGURATION.md for role reference options (name, arn, id).
# Roles granted access to the KMS key and KeyPair secrets
adminRoles:
  - name: Admin

# (Optional) Security group for the instance
securityGroups:
  my-sg:
    # VPC ID for security group
    # Often created by your VPC/networking stack.
    # Example SSM: ssm:/path/to/vpc/id
    vpcId: vpc-testvpc

# (Optional) EC2 instances — the module's primary resource.
instances:
  my-instance:
    securityGroup: my-sg
    # VPC ID for EC2 instance deployment
    # Often created by your VPC/networking stack.
    # Example SSM: ssm:/path/to/vpc/id
    vpcId: vpc-testvpc
    # Subnet ID for EC2 instance placement
    # Often created by your VPC/networking stack.
    # Example SSM: ssm:/path/to/subnet/id
    subnetId: subnet-testsubnet
    availabilityZone: '{{region}}a'
    instanceType: t3.medium
    amiId: ami-test
    instanceRole:
      name: instance-role
    blockDevices:
      - deviceName: '/dev/sda1'
        volumeSizeInGb: 32
        ebsType: gp3
    osType: linux

Comprehensive Configuration

Provisions EC2 instances with key pairs, security groups, and CloudFormation Init bootstrapping, supporting both Linux and Windows instances with user data scripts and cfnInit configurations. Start here when evaluating all available options for key pairs, security group rules, cfnInit bootstrapping, and multi-OS support.

sample-config-comprehensive.yaml

# Contents available via above link
# EC2 module configuration.
# Provisions EC2 instances with key pairs, security groups, and
# CloudFormation Init bootstrapping. Supports both Linux and Windows
# instances with user data scripts and cfnInit configurations.
# This comprehensive config exercises every compatible property at
# full depth.

# See CONFIGURATION.md for role reference options (name, arn, id).
# Roles granted access to the KMS key and KeyPair secrets.
# Roles can be referenced by name, arn, or id.
adminRoles:
  - name: Admin
  - arn: arn:{{partition}}:iam::{{account}}:role/some-admin-role
  - name: EC2Admin

# (Optional) Map of key pair names to key pair configurations.
# Private keys are stored in Secrets Manager.
keyPairs:
  # Key pair with default settings
  test-key-pair: {}
  # Key pair with custom KMS encryption
  test-key-pair2:
    # (Optional) KMS key ARN to encrypt the private key in
    # Secrets Manager
    kmsKeyArn: 'arn:{{partition}}:kms:{{region}}:{{account}}:key/test-key'

# (Optional) Map of security group names to configurations
securityGroups:
  sg1:
    # VPC ID for the security group
    # Often created by your VPC/networking stack.
    # Example SSM: ssm:/path/to/vpc/id
    vpcId: vpc-testvpc
    # (Optional) Add bidirectional self-referencing rule allowing
    # instances in this group to communicate with each other
    addSelfReferenceRule: true
    # (Optional) Inbound traffic rules
    ingressRules:
      # Rules for IPv4 CIDR-based ingress
      ipv4:
        - cidr: 10.0.0.0/28
          port: 443
          protocol: tcp
          # (Optional) Description for the rule
          description: HTTPS from internal subnet
          # (Optional) Ending port for a port range
          toPort: 443
      # Rules for prefix list-based ingress
      prefixList:
        - prefixList: pl-4ea54027
          description: prefix list for DynamoDB endpoint
          protocol: tcp
          port: 443
          # (Optional) Ending port for a port range
          toPort: 443
      # Rules for security group-based ingress
      sg:
        - sgId: sg-ingresssource
          port: 8080
          protocol: tcp
          # (Optional) Description for the rule
          description: Ingress from app tier SG
          # (Optional) Ending port for a port range
          toPort: 8080
    # (Optional) Outbound traffic rules
    egressRules:
      prefixList:
        - prefixList: pl-4ea54027
          description: prefix list for DynamoDB endpoint
          protocol: tcp
          port: 443
        - prefixList: pl-7da54014
          description: prefix list for S3 endpoint
          protocol: tcp
          port: 443
      ipv4:
        - cidr: 10.0.0.0/28
          port: 443
          protocol: tcp
      sg:
        - sgId: ssm:/ml/sm/sg/id
          port: 5472
          protocol: tcp

# (Optional) Map of named CloudFormation Init configurations.
# Referenced by instances via initName.
cfnInit:
  initWindows:
    # Map of config set names to ordered config lists
    configSets:
      default:
        # Ordered list of config names to execute
        configs:
          - 'awscli'
          - 'Preinstall'
      confgiset2:
        configs:
          - 'Preinstall'
          - 'awscli'
    # Map of config names to config definitions
    configs:
      awscli:
        # (Optional) Packages to install
        packages:
          awspackage:
            # Package manager (msi, rpm, python, yum, apt, gem)
            packageManager: msi
            # Package download location
            packageLocation: 'https://awscli.amazonaws.com//AWSCLI64.msi'
            # (Optional) Identifier key for MSI/RPM packages
            key: awscli-msi
            # (Optional) Restart associated services after install
            restartRequired: true
          anotherpackage:
            packageManager: msi
            packageLocation: 'https://awscli.amazonaws.com//thisisanotherpackage.msi'
      Preinstall:
        packages:
          git:
            packageManager: msi
            packageLocation: 'https://awscli.amazonaws.com/somepackagefromconfig.msi'
        # (Optional) Commands to execute (run in lexicographic order
        # of key names)
        commands:
          01testCommand:
            # Shell command string
            shellCommand: 'echo "this is a command"'
          02anotherTestCommand:
            shellCommand: 'echo "this TOO is a command"'
            # (Optional) Test command; success skips main command
            testCommand: 'echo "this is test command"'
            # (Optional) Working directory for the command
            workingDir: '/some/dir/'
            # (Optional) Resume cfn-init after reboot
            waitForever: true
            # (Optional) Restart service after command completes
            restartRequired: true
          03commandWithArgvs:
            # (Optional) Command as argument vector (mutually
            # exclusive with shellCommand)
            argvs:
              - 'powershell.exe'
              - '-Command'
              - 'Write-Host "argv command"'
            # (Optional) Environment variables for the command
            env:
              MY_VAR: my-value
              ANOTHER_VAR: another-value
            # (Optional) Continue if this command fails
            ignoreErrors: true
            # (Optional) Minutes to wait after completion (Windows)
            waitAfterCompletion: 2
          04commandWithWaitNone:
            shellCommand: 'echo "fire and forget"'
            # (Optional) Do not wait after command completes
            waitNone: true
        # (Optional) Files to create on the instance
        files:
          testfile.txt:
            # Path to source file
            filePath: './somefile.txt'
            restartRequired: true
        # (Optional) Services to manage
        services:
          cfn-hup:
            # Whether the service should be enabled
            enabled: true
            # Ensure the service is running
            ensureRunning: true
            # Restart after file/package/command changes
            restartRequired: true
          # (Optional) Explicitly disable and stop a service
          unused-svc:
            # (Optional) Disable and stop the service
            disabled: true

  initLinux:
    configSets:
      default:
        configs:
          - 'Apache'
          - 'Prereq'
      confgiset2:
        configs:
          - 'Prereq'
          - 'Apache'
    configs:
      Prereq:
        packages:
          git:
            packageManager: yum
            packageName: git
            packageVersions: []
          rpmpackage:
            packageManager: rpm
            packageLocation: 'https://awscli.amazonaws.com//rpmpackage.rpm'
          jqpackage:
            packageManager: yum
            packageName: jq
            packageVersions: []
        # (Optional) Linux/UNIX groups to create (not Windows)
        groups:
          app-group:
            # (Optional) Specific numeric group ID
            gid: '501'
        # (Optional) Linux/UNIX user accounts to create (not Windows)
        users:
          app-user:
            # Groups the user belongs to
            groups:
              - app-group
            # Home directory path
            homeDir: /home/app-user
            # (Optional) Specific numeric user ID
            uid: '1001'
        # (Optional) Archive files to download and extract
        sources:
          /opt/app:
            # URL of the archive to extract into the target directory
            source: 'https://example.com/app-archive.tar.gz'
      Apache:
        packages:
          apachepackage:
            packageManager: yum
            packageName: httpd
            packageVersions: []

# (Optional) Map of instance names to EC2 instance configurations
instances:
  # Linux instance with named init, key pair, and user data
  instance-1:
    # Reference to a security group from the securityGroups section
    securityGroup: sg1
    # Often created by your VPC/networking stack.
    # Example SSM: ssm:/path/to/vpc/id
    vpcId: vpc-testvpc
    # Often created by your VPC/networking stack.
    # Example SSM: ssm:/path/to/subnet/id
    subnetId: subnet-testsubnet
    availabilityZone: '{{region}}a'
    instanceType: t3.medium
    amiId: ami-linux
    # Instance profile role (by arn, name, or id)
    instanceRole:
      arn: arn:{{partition}}:iam::{{account}}:role/instance-role
    # (Optional) EBS block device mappings
    blockDevices:
      - # Device name (must include root volume for unencrypted AMIs)
        deviceName: '/dev/sda1'
        # Volume size in GB
        volumeSizeInGb: 32
        # EBS volume type (gp2, gp3, io1, io2, sc1, st1, standard)
        ebsType: gp3
    # OS type (linux, windows, unknown)
    osType: linux
    # (Optional) Path to user data script relative to this config
    userDataScriptPath: './userdata.sh'
    # (Optional) Name of a key pair from the keyPairs section
    keyPairName: test-key-pair
    # (Optional) Name of a cfnInit configuration to apply
    initName: initLinux
    # (Optional) Disable source/destination checking for NAT or
    # routing instances
    sourceDestCheck: false

  # Windows instance with existing security group, custom KMS, and
  # init options
  instance-2:
    # ID of an existing security group (not from this config)
    securityGroupId: sg-123412412
    # Often created by your VPC/networking stack.
    # Example SSM: ssm:/path/to/vpc/id
    vpcId: vpc-testvpc
    # Often created by your VPC/networking stack.
    # Example SSM: ssm:/path/to/subnet/id
    subnetId: subnet-testsubnet
    instanceType: t3.medium
    availabilityZone: '{{region}}b'
    amiId: ami-windows
    instanceRole:
      name: some-instance-role-name
    blockDevices:
      - deviceName: '/dev/sda1'
        volumeSizeInGb: 32
        ebsType: gp3
      - deviceName: '/dev/sdb1'
        volumeSizeInGb: 16
        ebsType: gp2
        # (Optional) IOPS for io1/io2 volumes
        iops: 3000
    # (Optional) KMS key ARN for EBS volume encryption
    kmsKeyArn: 'arn:{{partition}}:kms:{{region}}:{{account}}:key/test-key'
    osType: windows
    userDataScriptPath: './userdata.ps1'
    # (Optional) Whether user data changes trigger instance
    # replacement
    userDataCausesReplacement: false
    # (Optional) Name of an existing key pair (created outside
    # this config)
    existingKeyPairName: 'rsa-key'
    initName: initWindows
    # (Optional) Init execution options
    initOptions:
      # (Optional) Config sets to run (default: ['default'])
      configSets: ['confgiset2']
      # (Optional) Include IAM role in cfn-init call
      includeRole: true
      # (Optional) Embed config fingerprint in UserData for
      # automatic replacement on config change (default: true)
      embedFingerprint: false
      # (Optional) Continue instance creation even if cfn-init
      # fails (default: false)
      ignoreFailures: false
      # (Optional) Include --url argument for custom CloudFormation
      # endpoint
      includeUrl: true
      # (Optional) Print cfn-init output to EC2 System Log
      printLog: true
      # (Optional) Max time in minutes to wait for init
      # (default: 5)
      timeout: 30
    # (Optional) Number of success signals required before
    # CREATE_COMPLETE
    signalCount: 1
    # (Optional) Timeout for creation policy (ISO 8601 duration)
    creationTimeOut: PT25M

Inline Init Configuration

Demonstrates using an inline CloudFormation Init definition directly on an instance (via the "init" property) instead of referencing a named init from the top-level cfnInit section. Choose this variant when you prefer to co-locate bootstrap configuration with the instance definition rather than referencing shared init blocks.

sample-config-inline-init.yaml

# Contents available via above link
# EC2 module configuration — inline init variant.
# Demonstrates using an inline CloudFormation Init definition directly
# on an instance (via the "init" property) instead of referencing a
# named init from the top-level cfnInit section. Also exercises the
# osType "unknown" enum value.

# See CONFIGURATION.md for role reference options (name, arn, id).
# Roles granted access to the KMS key and KeyPair secrets
adminRoles:
  - name: Admin

# (Optional) Map of instance names to EC2 instance configurations
instances:
  # Instance with inline init and osType unknown
  instance-inline:
    securityGroupId: sg-inlinetest
    # Often created by your VPC/networking stack.
    # Example SSM: ssm:/path/to/vpc/id
    vpcId: vpc-testvpc
    # Often created by your VPC/networking stack.
    # Example SSM: ssm:/path/to/subnet/id
    subnetId: subnet-testsubnet
    availabilityZone: '{{region}}a'
    instanceType: t3.micro
    amiId: ami-generic
    instanceRole:
      name: inline-instance-role
    blockDevices:
      - deviceName: '/dev/sda1'
        volumeSizeInGb: 20
        ebsType: gp3
    # OS type for the instance
    osType: linux
    # (Optional) Inline CloudFormation Init configuration
    # (alternative to initName referencing a top-level cfnInit entry)
    init:
      configSets:
        default:
          configs:
            - 'setup'
      configs:
        setup:
          commands:
            01hello:
              shellCommand: 'echo "inline init"'

Config Schema Docs

EC2
