Glue CSV Parquet Transformer

This blueprint illustrates how to use an Scheduled Glue Workflow to trigger an DataOps Glue ETL Job to transform large CSV files into parqeut.

This blueprint may be suitable when: files are being regularly uploaded to the data lake, and need to be quickly transformed into parquet, perhaps in a standardized zone of the lake.

  • Medium-Large sized csv files in the datalake needs to be transformed into parquet, perhaps in a standardized zone of the lake.

While the blueprint doesn't immediately handle partitioning, or additional transformation, the Glue ETL Job can be easily extended to provide these capabilities.

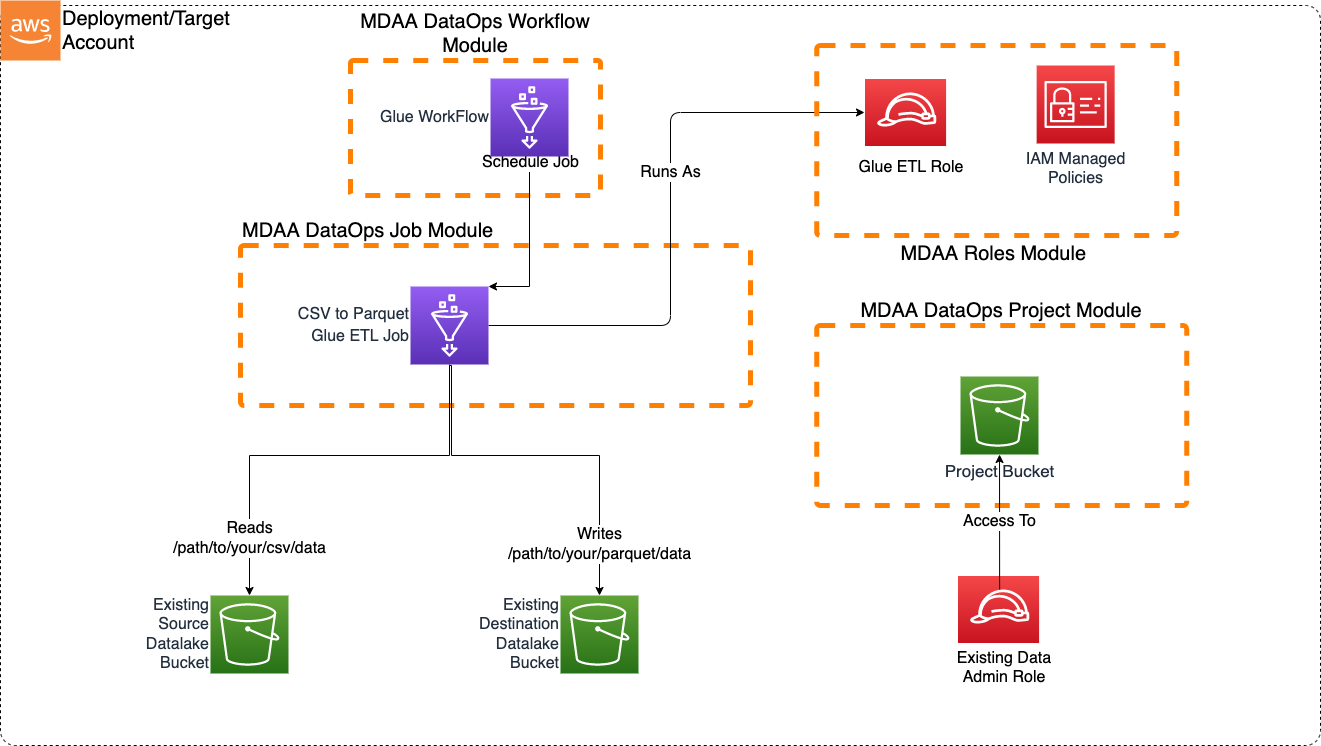

Glue CSV Parqet Transformer

Usage Instructions

The following instructions assume you have already deployed your Data Lake (possibly using MDAA). If already using MDAA, you can merge these sample blueprint configs into your existing mdaa.yaml.

  1. Deploy sample configurations into the specified directory structure (or obtain from the MDAA repo under sample_blueprints/glue_csv_parquet).

  2. Edit the mdaa.yaml to specify an organization name to replace <unique-org-name>. This must be a globally unique name, as it is used in the naming of all deployed resources, some of which are globally named (such as S3 buckets).

  3. Edit the mdaa.yaml to specify a project name which is unique within your organization, replacing <your-project-name>.

  4. Edit the mdaa.yaml to specify appropriate context values for your environment.

  5. Optionally, edit glue_csv_parquet/glue_csv_parquet/src/glue/glue_csv_parquet/glue_csv_parquet.py to handle additional transformation and partitioning.

  6. Ensure you are authenticated to your target AWS account.

  7. Optionally, run <path_to_mdaa_repo>/bin/mdaa -l ls from the directory containing mdaa.yaml to understand what stacks will be deployed.

  8. Optionally, run <path_to_mdaa_repo>/bin/mdaa -l synth from the directory containing mdaa.yaml and review the produced templates.

  9. Run <path_to_mdaa_repo>/bin/mdaa -l deploy from the directory containing mdaa.yaml to deploy all modules.

  10. Before loading csv files, you will need to provide the generated glue-etl role with access to your datalake bucket(s).

Additional MDAA deployment commands/procedures can be reviewed in DEPLOYMENT.

Configurations

The sample configurations for this blueprint are provided below. They are also available under sample_blueprints/glue_csv_parquet whithin the MDAA repo.

Config Directory Structure

glue_csv_parquet
│   mdaa.yaml
│   tags.yaml
│
└───glue_csv_parquet
    └───roles.yaml
    └───project.yaml
    └───jobs.yaml

mdaa.yaml

This configuration specifies the global, domain, env, and module configurations required to configure and deploy this sample architecture.

Note - Before deployment, populate the mdaa.yaml with appropriate organization and context values for your environment

# Contents available in mdaa.yaml
# All resources will be deployed to the default region specified in the environment or AWS configurations.
# Can optional specify a specific AWS Region Name.
region: default

# One or more tag files containing tags which will be applied to all deployed resources
tag_configs:
  - ./tags.yaml

## Pre-Deployment Instructions

# TODO: Set an appropriate, unique organization name, likely matching the org name used in other MDAA configs.
# Failure to do so may resulting in global naming conflicts.
organization: test-glue-blueprint #<unique-org-name>

# One or more domains may be specified. Domain name will be incorporated by default naming implementation
# to prefix all resource names.
domains:
  # TODO: Set an appropriate project name. This project name should be unique within the organzation.
  <your-project-name>:
    # One or more environments may be specified, typically along the lines of 'dev', 'test', and/or 'prod'
    environments:
      # The environment name will be incorporated into resource name by the default naming implementation.
      dev:
        # The target deployment account can be specified per environment.
        # If 'default' or not specified, the account configured in the environment will be assumed.
        account: default
        #TODO: Set context values appropriate to your env
        context:
          # The arn of a role which will be provided admin privileges to dataops resources
          data_admin_role_arn : <your-data-admin-role-arn>
          # The name of the datalake S3 bucket where the csv files will be uploaded
          datalake_src_bucket_name: <your-src-datalake-bucket-name>
          # The prefix on the datalake S3 bucket where the csv files will be uploaded
          datalake_src_prefix: <your/path/to/csv>
          # The name of the datalake S3 bucket where the parquet files will be written
          datalake_dest_bucket_name: <your-dest-datalake-bucket-name>
          # The prefix on the datalake S3 bucket where the parquet files will be written
          datalake_dest_prefix: <your/path/to/parquet>
          # The arn of the KMS key used to encrypt the datalake bucket
          datalake_kms_arn: <your-datalake-kms-key-arn>
          # The arn of the KMS key used to encrypt the Glue Catalog
          glue_catalog_kms_arn: <your-datalake-kms-key-arn>
        # The list of modules which will be deployed. A module points to a specific MDAA CDK App, and
        # specifies a deployment configuration file if required.
        modules:
          # This module will create all of the roles required for the GLUE ETL Job
          roles:
            module_path: "@aws-mdaa/roles"
            module_configs:
              - ./glue_csv_parquet/roles.yaml
          # This module will create DataOps Project resources which can be shared
          # across multiple DataOps modules
          project:
            module_path: "@aws-mdaa/dataops-project"
            module_configs:
              - ./glue_csv_parquet/project.yaml
          # This module will create the csv to parquet GLUE ETL Job
          jobs:
            module_path: "@aws-mdaa/dataops-job"
            module_configs:
              - ./glue_csv_parquet/jobs.yaml
          # This module will create an AWS Glue Workflow which will schedule the csv to parquet GLUE ETL Job
          workflow:
             module_path: "@aws-mdaa/dataops-workflow"
             tag_configs:
               - ./tags.yaml
             module_configs:
               - ./glue_csv_parquet/workflow.yaml

tags.yaml

This configuration specifies the tags to be applied to all deployed resources.

# Contents available in tags.yaml
tags:
  costcentre: '123456'
  project: data-ecosystem

glue_csv_parquet/roles.yaml

This configuration will be used by the MDAA Roles module to deploy IAM roles and Managed Policies required for this sample architecture.

# Contents available in roles.yaml
# The list of roles which will be generated
generatePolicies:
  GlueJobPolicy:
    policyDocument:
      Statement:
        - SID: GlueCloudwatch
          Effect: Allow
          Resource:
            - "arn:{{partition}}:logs:{{region}}:{{account}}:log-group:/aws-glue/*"
          Action:
            - logs:CreateLogStream
            - logs:AssociateKmsKey
            - logs:CreateLogGroup
            - logs:PutLogEvents
    suppressions:
      - id: "AwsSolutions-IAM5"
        reason: "Glue log group name not known at deployment time."

generateRoles:
  glue-etl:
    trustedPrincipal: service:glue.amazonaws.com
    # A list of AWS managed policies which will be added to the role
    awsManagedPolicies:
      - service-role/AWSGlueServiceRole
    generatedPolicies:
      - GlueJobPolicy
    suppressions:
      - id: "AwsSolutions-IAM4"
        reason: "AWSGlueServiceRole approved for usage"

glue_csv_parquet/project.yaml

This configuration will create a DataOps Project which can be used to support a wide variety of data ops activities. Specifically, this configuration will create a number of Glue Catalog databases and apply fine-grained access control to these using basic.

# Contents available in dataops/project.yaml
# Arns for IAM roles which will be provided to the projects's resources (IE bucket)
dataAdminRoles:
  # This is an arn which will be resolved first to a role ID for inclusion in the bucket policy.
  # Note that this resolution will require iam:GetRole against this role arn for the role executing CDK.
  - arn: "{{context:data_admin_role_arn}}"

# List of roles which will be used to execute dataops processes using project resources
projectExecutionRoles:
  - id: generated-role-id:glue-etl

s3OutputKmsKeyArn: "{{context:datalake_kms_arn}}"
glueCatalogKmsKeyArn: "{{context:glue_catalog_kms_arn}}"

glue_csv_parquet/lambda.yaml

This configuration will create the transformation Glue ETL Job using the DataOps Glue Job module.

# Contents available in dataops/glue.yaml
# The name of the dataops project this crawler will be created within.
# The dataops project name is the MDAA module name for the project.
projectName: project

templates:
  # An example job template. Can be referenced from other jobs. Will not itself be deployed.
  glue-csv-parquet-template:
    # (required) Command definition for the glue job
    command:
      name: "glueetl"
      pythonVersion: "3"
    # (required) Description of the Glue Job
    description: Template to create a Job that transforms CSVs into Parquet
    defaultArguments:
      --job-bookmark-option: job-bookmark-disable
      --raw_bucket: "{{context:datalake_src_bucket_name}}"
      --raw_bucket_prefix: "{{context:datalake_src_prefix}}"
      --transformed_bucket: "{{context:datalake_dest_bucket_name}}"
      --transformed_bucket_prefix: "{{context:datalake_dest_prefix}}"
      --enable-glue-datacatalog: "True"
      --region_name: "{{region}}"
    # (optional) maximum concurrent runs.  See: https://docs.aws.amazon.com/glue/latest/dg/aws-glue-api-jobs-job.html#aws-glue-api-jobs-job-ExecutionProperty
    executionProperty:
      maxConcurrentRuns: 1
    # (optional) Glue version to use as a string.  See: https://docs.aws.amazon.com/glue/latest/dg/release-notes.html
    glueVersion: "4.0"
    maxRetries: 0
    # (optional) Number of minutes to wait before sending a job run delay notification.
    notificationProperty:
      notifyDelayAfter: 1
    # (optional) Number of workers to provision
    #numberOfWorkers: 1
    # (optional) Number of minutes to wait before considering the job timed out
    timeout: 60
    # (optional) Worker type to use.  Any of: "Standard" | "G.1X" | "G.2X"
    # Use maxCapacity or WorkerType.  Not both.
    # workerType: "G.1X"
    executionRoleArn: generated-role-arn:glue-etl
    # Viewing real-time logs provides you with a better perspective on the running job.
    # https://docs.aws.amazon.com/glue/latest/dg/monitor-continuous-logging.html
    continuousLogging:
      # For allowed values, refer https://docs.aws.amazon.com/cdk/api/v2/docs/aws-cdk-lib.aws_logs.RetentionDays.html
      # Possible values are: 1, 3, 5, 7, 14, 30, 60, 90, 120, 150, 180, 365, 400, 545, 731, 1827, 3653, and 0.
      logGroupRetentionDays: 14

jobs:
  glue_csv_parquet:
    template: "glue-csv-parquet-template" # Reference a job template.
    command:
      scriptLocation: ./src/glue/glue_csv_parquet/glue_csv_parquet.py
    allocatedCapacity: 2
    description: Job for Transform CSVs into Parquet
