Machine to Machine API
Note: This documentation is also available in a rendered format here.
Deploys a secure REST API via Amazon API Gateway for machine-to-machine interaction with a data lake, with Cognito-based client authentication, WAF IP filtering, and Lambda-backed integrations. Use this module when you need to provide external applications or partner systems with authenticated, IP-restricted programmatic access to data in your data lake.

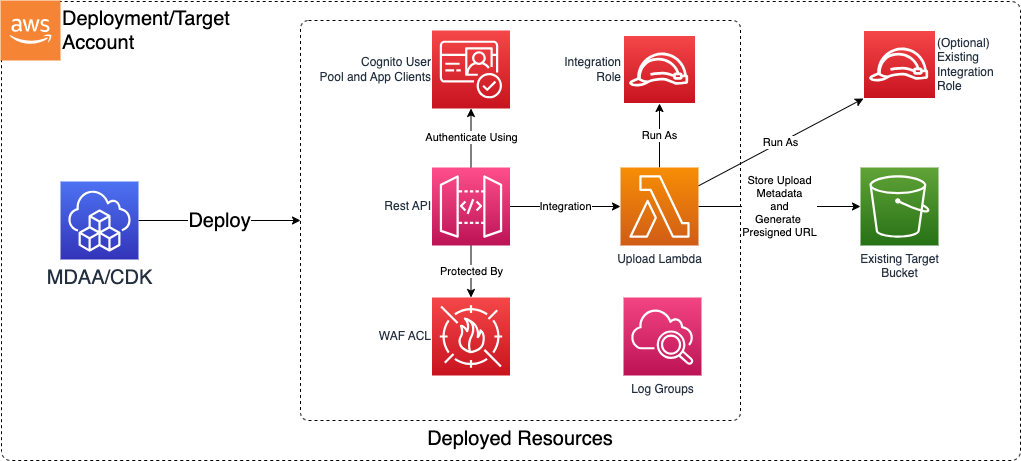

Deployed Resources
This module deploys and integrates the following resources:
- API Gateway REST API: REST API for programmatic data lake interaction with request validation and stage configuration
- Cognito User Pool: Manages client app credentials (client ID/secret) for API authentication with configurable token validity
- WAF WebACL: IP-based access filtering restricting API access to authorized CIDR blocks. Additional WAF ACLs can be attached.
- Lambda Functions: API handler functions executing data operations against the target S3 bucket with configurable concurrency limits
- KMS Encryption Key: Encrypts API and Cognito resources
- CloudWatch Log Groups: API Gateway access logs and Lambda execution logs

Related Modules
- Data Lake — Deploy data lake S3 buckets that the M2M API provides programmatic access to
- Roles — Create IAM roles for API client authentication or Lambda execution
Security/Compliance Details
This module is designed in alignment with MDAA security/compliance principles and CDK nag rulesets. Additional review is recommended prior to production deployment, ensuring organization-specific compliance requirements are met.
- Encryption at Rest:
- KMS encryption for API and Cognito resources
- Encryption in Transit:
- All data in transit over HTTPS
- Least Privilege:
- Cognito User Pool provides OAuth2 client credentials flow
- App clients have configurable token validity periods
- Lambda execution role follows least-privilege with scoped S3 access
- Network Isolation:
- WAF WebACL applies IP-based access control with default-deny
- Only explicitly allowed CIDR ranges can reach the API
Caller-Chosen Object Keys
By default, every upload is stored as {targetPrefix}/{uuid}, where uuid is generated by the API. Set allowCallerKeyPath: true to let callers choose where an upload lands under targetPrefix and what it is named, through two optional query parameters on the upload calls:
sub_path: one or more/-separated segments, for examplesource-a/device-7/year=2026/month=10filename: a single segment, for examplecapture-0042.parquet
Either can be sent alone, or both together:
sub_path |
filename |
Object key |
|---|---|---|
| absent | absent | {targetPrefix}/{uuid} |
| set | absent | {targetPrefix}/{sub_path}/{uuid} |
| absent | set | {targetPrefix}/{uuid}_{filename} |
| set | set | {targetPrefix}/{sub_path}/{uuid}_{filename} |
The uuid keeps every key unique, so two uploads with the same sub_path and filename never overwrite each other. It is joined to the filename rather than given its own path level, so a Glue crawler does not create one partition per upload. The original filename is the last key segment with its 37-character {uuid}_ prefix removed.
When either parameter is sent, the unipart and multi_init responses return the resolved key as object_key alongside uuid, and the metadata object records it as object_key. The metadata object itself stays at {metadataTargetPrefix}/{uuid}.metadata.json.
When allowCallerKeyPath is false, both parameters are ignored, even if a client sends them.
Multipart Uploads
Send the same sub_path and filename on every multi_init, multi_upload, and multi_complete call of one upload. The key is rebuilt on each call, so different values address a different key, which the upload_id does not belong to: the part upload fails at S3 with NoSuchUpload, and multi_complete returns 400.
Parameter Rules
Values are checked before anything is written to S3. A request that breaks a rule returns 400 with an error naming the parameter, and creates neither a metadata object nor a multipart upload.
- Each
sub_pathsegment and thefilenameuse onlyA-Z a-z 0-9 ! - _ . * ' ( ), the safe characters in the S3 object key naming guidelines, plus=for Hive-stylekey=valuepartitions. sub_pathhas no leading, trailing, or repeated/, and no.or..segments.filenameis a single segment, and is not.or...- The
uuidsent onmulti_uploadandmulti_completeis in the formmulti_initreturns: lowercase hexadecimal in the 8-4-4-4-12 layout, 36 characters. - The resolved key is at most 1024 bytes, the S3 object key length limit.
An empty value is an empty segment and is rejected; omit the parameter instead. Clients with filenames outside this character set, such as names containing spaces, sanitize them before calling. URL-encode both values, as HTTP client libraries do for query parameters.
If requestParameters lists the accepted query parameters, add sub_path and filename to it as optional (false).
Before Enabling
- A sub-path is not an isolation boundary. Every authenticated app client can write to any sub-path under
targetPrefix. Where one source must not be able to write into another source's sub-path, deploy a separate API for each. - Clients may already send these parameter names. A client that already sends
sub_pathorfilename, for example to capture them into metadata througheventMetadataMappings, gets different object keys once the flag is on, and has its requests rejected if a value breaks the rules above. - Downstream consumers may assume a flat prefix. Check that crawlers, jobs, and lifecycle rules reading
targetPrefixhandle nested keys.
S3 access does not change: every key stays under {targetPrefix}/, so a grant to the integration Lambda role scoped to {targetPrefix}/* still covers it.
Configuration
MDAA Config
Add the following snippet to your mdaa.yaml under the modules: section of a domain/env in order to use this module:
m2m-api: # Module Name can be customized
module_path: '@aws-mdaa/m2m-api' # Must match module NPM package name
module_configs:
- ./m2m-api.yaml # Filename/path can be customized
Module Config Samples and Variants
Copy the contents of the relevant sample config below into the ./m2m-api.yaml file referenced in the MDAA config snippet above.
Minimal Configuration
Deploys an API Gateway with Cognito client credentials authentication, WAF protection, CIDR-based access control, and Lambda integration for secure machine-to-machine data lake access via REST API. Start here for a basic M2M API with a single client and IP-restricted access to a data lake bucket.
# Contents available via above link
# M2M API Module - Minimal Sample Configuration
# Deploys an API Gateway with Cognito client credentials authentication,
# WAF protection, CIDR-based access control, and Lambda integration
# for secure machine-to-machine data lake access via REST API.
#
# This config includes only the required properties for a working deployment.
# M2M API configuration defining API Gateway setup with
# authentication, authorization, and security controls.
api:
# See CONFIGURATION.md for role reference options (name, arn, id).
# List of admin roles which will be granted admin access to generated resources
# (currently KMS key)
adminRoles:
- arn: arn:{{partition}}:iam::{{account}}:role/test-admin-role-arn
# The target bucket against which API interactions will be executed
# Often created by the Data Lake module.
# Example SSM: ssm:/{{org}}/{{domain}}/<datalake_module_name>/bucket/<zone_name>/name
targetBucketName: landing-bucket-name
# The target prefix in the target bucket
targetPrefix: testing
# The reserved concurrency limit for the Lambda which executes the API actions
concurrencyLimit: 10
# The list of allowed IPV4 CIDR ranges which will be permitted access to the API.
# All other requests will be denied.
allowedCidrs:
- 10.0.0.0/8
Comprehensive Configuration
Deploys an API Gateway with Cognito client credentials authentication, WAF protection, CIDR-based access control, and Lambda integration for secure machine-to-machine data lake access via REST API. Start here when evaluating all available options for multiple clients, token validity, WAF rules, and Lambda concurrency settings.
sample-config-comprehensive.yaml
# Contents available via above link
# M2M API Module - Comprehensive Sample Configuration
# Deploys an API Gateway with Cognito client credentials authentication,
# WAF protection, CIDR-based access control, and Lambda integration
# for secure machine-to-machine data lake access via REST API.
#
# This config exercises ALL available properties at full depth.
# M2M API configuration defining API Gateway setup with
# authentication, authorization, and security controls.
api:
# See CONFIGURATION.md for role reference options (name, arn, id).
# List of admin roles which will be granted admin access to generated resources
# (currently KMS key)
adminRoles:
- name: M2MAdmin
- name: test-admin-role-name
- arn: arn:{{partition}}:iam::{{account}}:role/test-admin-role-arn
# (Optional) Whether the role is immutable and should not be modified by MDAA
immutable: true
# (Optional) Whether the role is an AWS SSO auto-generated role
sso: false
# The target bucket against which API interactions will be executed
# Often created by the Data Lake module.
# Example SSM: ssm:/{{org}}/{{domain}}/<datalake_module_name>/bucket/<zone_name>/name
targetBucketName: landing-bucket-name
# The target prefix in the target bucket
targetPrefix: testing
# (Optional) Identifies the target prefix for metadata within the bucket. If not specified, will default to targetPrefix.
metadataTargetPrefix: metadata-testing
# (Optional) If true, callers can send the sub_path and filename query parameters to choose
# where each upload lands under targetPrefix and what it is named. Defaults to false.
# See the module README for the object key format and the parameter rules.
allowCallerKeyPath: true
# The reserved concurrency limit for the Lambda which executes the API actions
concurrencyLimit: 10
# (Optional) Specific key to use to encrypt CloudWatch logs. If not specified, one will be created.
kmsKeyArn: arn:{{partition}}:kms:{{region}}:{{account}}:key/test-kms-key-id
# (Optional) API Gateway deployment stage name (e.g. dev, staging, prod). Defaults to prod.
stageName: prod
# (Optional) If true, the API Gateway CloudWatch role will be set at the account/region level. Should be done only once per account/region.
setAccountCloudWatchRole: false
# Additional WAF ACL arns which will be applied to the API Gateway.
# A default WAF is always generated which applies default deny IP address filtering.
wafArns:
test-waf: test-waf-arn
# The list of allowed IPV4 CIDR ranges which will be permitted access to the API.
# All other requests will be denied.
allowedCidrs:
- 10.0.0.0/8
- 192.168.0.0/16
- 172.16.0.0/12
# (Optional) This role will be used to execute the API integration Lambdas.
# If not specified, one will be created automatically.
integrationLambdaRoleArn: arn:{{partition}}:iam::{{account}}:role/some-lambda-role-arn
# (Optional) List of app clients to be added to the Cognito User Pool.
# A Client ID and Secret will be generated for each.
appClients:
test-client:
# (Optional) The validity period of the ID Token in minutes (default 60 minutes). Valid values are between 5 minutes and 1 day.
idTokenValidityMinutes: 60
# (Optional) The validity period of the Refresh Token in hours (default 30 days). Valid values between 60 minutes and 10 years.
refreshTokenValidityHours: 24
# (Optional) The validity period of the Access Token in minutes (default 60 minutes). Valid values are between 5 minutes and 1 day.
accessTokenValidityMinutes: 24
# (Optional) Map of accepted request parameter names to boolean indicating if they are required.
# If specified, API gateway will validate that: 1) each provided parameter is accepted;
# and 2) all required parameters have been provided.
requestParameters:
test_required_param: true
test_opt_param: false
# (Optional) Mapping of input event fields to metadata fields written to S3.
# (The input event is that provided from the API to the Lambda Function)
eventMetadataMappings:
Resource: resource
Host: headers.Host
UserAgent: headers.User-Agent
IPForwarding: headers.X-Forwarded-For
RequestTime: requestContext.requestTime
queryStringParameters: queryStringParameters
