Basic Data Science Platform

This starter kit deploys a team-based data science platform centered around SageMaker Studio, with an integrated data lake, query capabilities, and governed access control. Each data science team gets their own SageMaker Studio Domain, team-specific Athena Workgroup, and KMS-encrypted S3 storage for data and experimentation.

Deployment Instructions

Use Cases

  • Self-service data science environments for ML experimentation and model development
  • Team-isolated notebook environments with shared data lake access
  • Governed data exploration combining Athena queries with notebook-based analysis
  • Collaborative data science with role-based access (admin, user, scientist)
  • Secure ML workflows with encrypted storage and network-isolated compute

Capabilities

  • SageMaker Studio Domain with team-specific user profiles
  • KMS-encrypted S3 data lake with multi-zone storage (raw, transformed)
  • Fine-grained access control via Lake Formation
  • Athena workgroups for SQL-based data exploration
  • Glue Data Catalog with automated schema discovery via crawlers
  • IAM roles with separation of duties (data-admin, data-user, data-scientist, team-execution)
  • CloudTrail audit trail for compliance

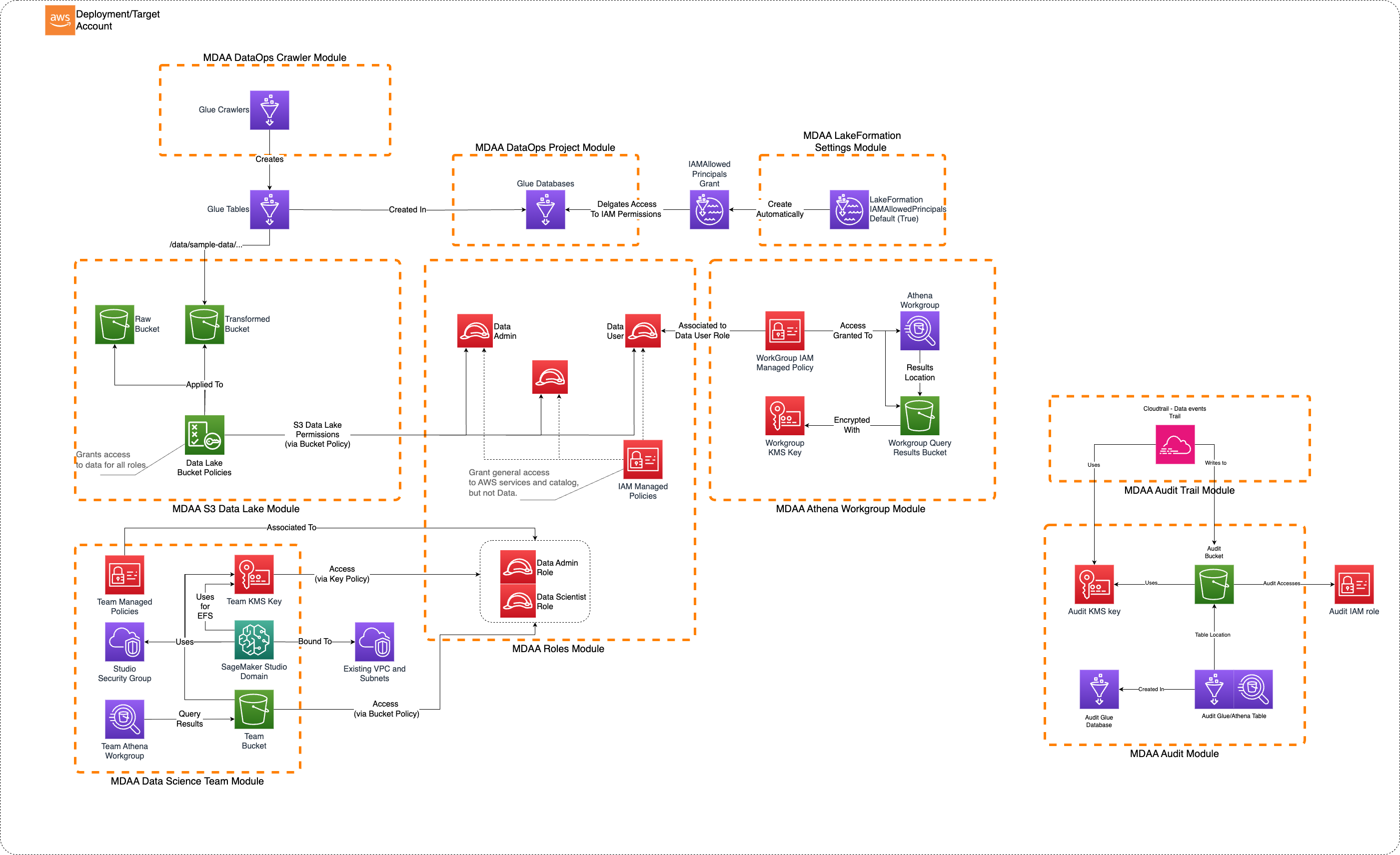

Architecture

DataScience

Deployment

Prerequisites and Predeployment

  1. Authenticate to your target AWS account and region. Ensure the authenticated role has permissions to deploy resources via CDK.
  2. Bootstrap CDK in your target account and region.
  3. Provision a VPC with at least 1 private subnet. Subnets must have connectivity to AWS service endpoints, either via:
    • NAT Gateway for outbound internet access, OR
    • VPC Endpoints for:
      • SageMaker API
      • SageMaker Runtime
      • S3
      • STS
      • CloudWatch Logs

Additional info: PREDEPLOYMENT

Configure MDAA

  1. Address all TODOs in mdaa.yaml, specifically:

    • Set organization to a globally unique name (used in S3 bucket names and all resource prefixes)
    • Set context values:
      • vpc_id — your VPC ID
      • subnet_id — a private subnet ID with AWS service connectivity
      • datascience_team_name — name for your data science team

  2. Address all TODOs in module configs, specifically:

    • CDK Nag suppressions in roles.yaml. Uncomment each suppression only after reviewing the associated permissions and confirming they are acceptable for your environment.

Deploy MDAA

Run the following from the starter kit directory (containing mdaa.yaml):

  1. Optionally, run npx @aws-mdaa/cli ls to understand what stacks will be deployed.

  2. Optionally, run npx @aws-mdaa/cli synth and review the produced templates.

  3. Run npx @aws-mdaa/cli deploy to deploy all modules.

Additional info: DEPLOYMENT

Next Steps

See USAGE for post-deployment instructions.

Modules Deployed

Module Purpose
@aws-mdaa/roles IAM roles and policies for all personas
@aws-mdaa/datalake KMS keys, S3 buckets, and bucket policies
@aws-mdaa/glue-catalog Glue Catalog KMS encryption (account-level)
@aws-mdaa/lakeformation-settings Lake Formation settings (account-level)
@aws-mdaa/athena-workgroup Athena workgroup with KMS encryption
@aws-mdaa/audit S3 audit bucket for CloudTrail/Inventory
@aws-mdaa/audit-trail CloudTrail audit trail
@aws-mdaa/dataops-project Glue databases with access control
@aws-mdaa/dataops-crawler Glue crawlers for schema discovery
@aws-mdaa/datascience-team SageMaker Studio Domain, team bucket, Athena workgroup

Troubleshooting

  1. SageMaker Studio fails to launch: Verify the VPC subnet has connectivity to SageMaker API endpoints (via NAT Gateway or VPC Endpoint). Check that the subnet ID in mdaa.yaml is a private subnet.

  2. User profile not accessible: The user profile's userid tag must match the session name of the IAM role being assumed. Verify the role session name matches the configured userid.

  3. Athena query returns Access Denied: Verify you are using the correct IAM role. Lake Formation permissions govern data access even if S3 bucket policy allows it.
