GAIA Chatbot Starter Kit

This starter kit deploys a production-ready GenAI chatbot backend using Amazon Bedrock Knowledge Bases, Guardrails, and serverless APIs. You provide a frontend application and documents for the knowledge base.

Deployment Instructions

Use Cases

  • RAG-powered chatbot with enterprise authentication
  • Document Q&A over internal knowledge bases (PDF, TXT, MD, HTML, DOCX)
  • Real-time streaming chat via WebSocket (AppSync Events)
  • Content-filtered AI responses with Bedrock Guardrails

Capabilities

  • Cognito User Pool with email/password or enterprise SSO authentication
  • Bedrock Knowledge Base with OpenSearch Serverless vector store
  • Bedrock Guardrails for content filtering and PII protection
  • KMS-encrypted S3 data lake for document storage
  • REST API (API Gateway) for session management, feedback, and admin operations
  • WebSocket API (AppSync Events) for real-time chat streaming
  • VPC-deployed Lambda functions for serverless compute
  • CloudFront CDN serving aws-exports.json configuration
  • WAF web application firewall (optional)

Architecture

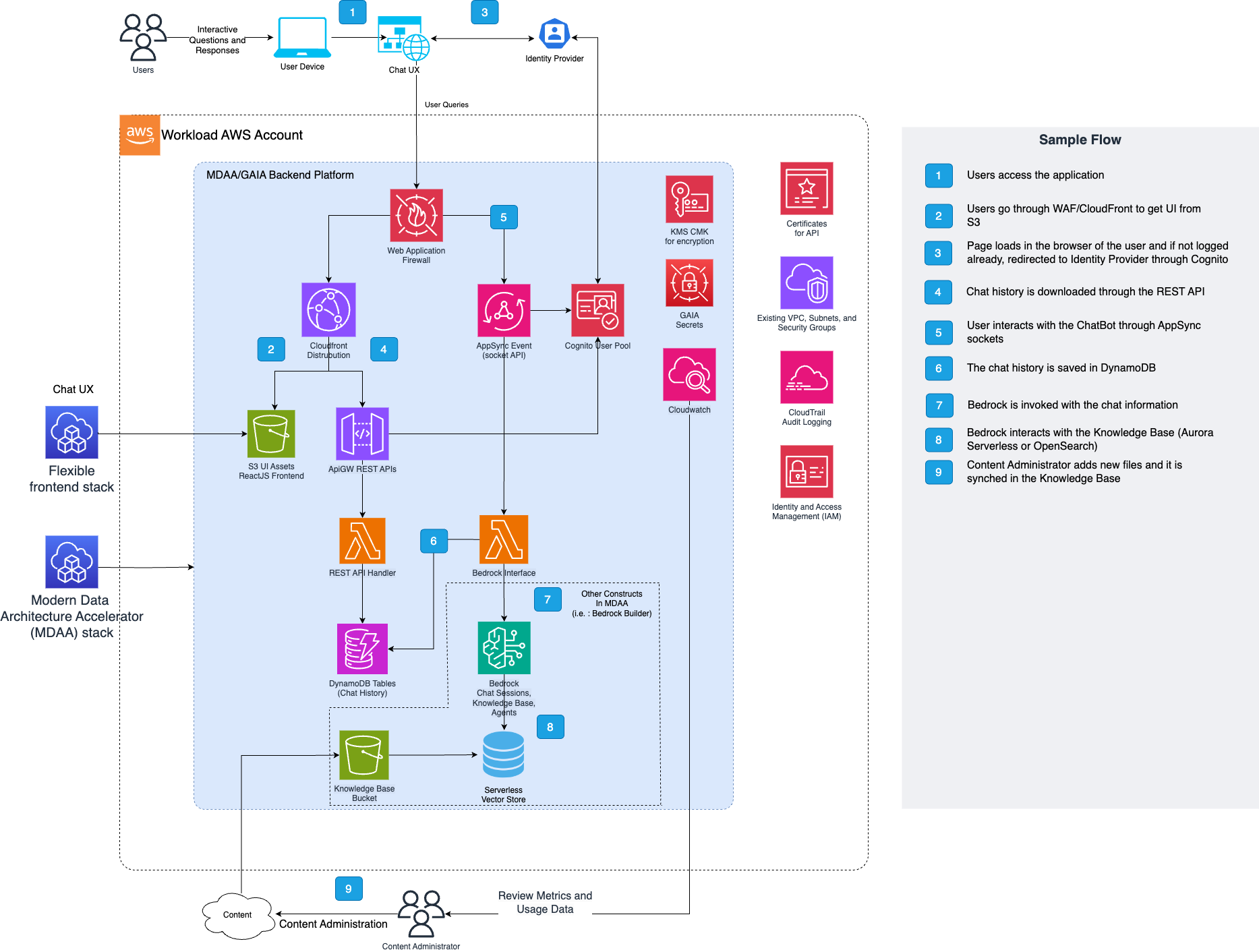

GAIA Chatbot Architecture

Deployment

Prerequisites and Predeployment

  1. Authenticate to your target AWS account and region. Ensure the authenticated role has permissions to deploy resources via CDK.
  2. Bootstrap CDK in your target account and region.
  3. If deploying outside us-east-1: also bootstrap CDK in us-east-1 in the same account. CloudFront WAF resources must be deployed in us-east-1; the module creates a cross-region stack there automatically via the additional_stacks configuration.
  4. Provision a VPC with private subnets and a NAT Gateway (required — AppSync Events has no VPC endpoint).
  5. Enable Bedrock model access in the AWS console for your target region.

Additional info: PREDEPLOYMENT

Configure MDAA

  1. Address all TODOs in mdaa.yaml, specifically:

    • Set organization to a globally unique name
    • Set context values:
      • vpc_id — VPC ID
      • app_subnet_id_1, app_subnet_id_2 — private subnets with NAT Gateway route
      • data_subnet_id_1, data_subnet_id_2 — data subnets (can be same as app subnets)
      • inference_model_arn — Bedrock model ARN or inference profile ARN
      • embedding_model — embedding model ID for knowledge base
      • waf_allowed_cidrs — IP allowlist (your IP, IPv6, NAT Gateway IP)

  2. Address all TODOs in module configs, specifically:

    • CDK Nag suppressions in config/roles.yaml. Uncomment each suppression only after reviewing the associated permissions and confirming they are acceptable for your environment.

Deploy MDAA

Run the following from the starter kit directory (containing mdaa.yaml):

  1. Optionally, run npx @aws-mdaa/cli ls to understand what stacks will be deployed.

  2. Optionally, run npx @aws-mdaa/cli synth and review the produced templates.

  3. Run npx @aws-mdaa/cli deploy to deploy all modules.

Additional info: DEPLOYMENT

Next Steps

See USAGE for post-deployment instructions.

Modules Deployed

Module Purpose
@aws-mdaa/roles IAM roles and policies
@aws-mdaa/datalake KMS-encrypted S3 buckets for document storage
@aws-mdaa/bedrock-builder Bedrock Knowledge Base and Guardrails
@aws-mdaa/gaia-v2 Chatbot backend (API Gateway, Lambda, Cognito, CloudFront, AppSync, WAF)

Troubleshooting

  1. 403 Forbidden on Cognito login: Ensure cognitoAddAsIdentityProvider: true is set in gaia.yaml. If WAF is enabled, verify your IPv4 and IPv6 addresses are in the allowlist.

  2. Chat messages hang / no response: WAF is blocking Lambda responses through AppSync. Add your NAT Gateway's public IP to waf_allowed_cidrs in mdaa.yaml.

  3. Lambda timeouts / connection errors: Subnets must have a route to a NAT Gateway. AppSync Events has no VPC endpoint, so NAT Gateway is mandatory.

  4. Knowledge base not finding documents: Verify documents are uploaded to the correct S3 prefix (data/bedrock-knowledge-base/) and sync the knowledge base in the Bedrock console.

  5. "CloudFront WAF requires a cross-region stack when your primary region is not us-east-1": The gaia-chatbot module deploys a CloudFront distribution with a WAF WebACL. WAF for CloudFront must reside in us-east-1. If your deployment region is not us-east-1, ensure that additional_stacks: [{region: us-east-1}] is present on the gaia-chatbot module in mdaa.yaml and that you have bootstrapped CDK in us-east-1 (see Prerequisites step 3).
