Minimal

This starter kit deploys the foundational governance layer required by all MDAA architectures: IAM roles, Glue Catalog encryption, and LakeFormation settings. Use this as a starting point when you want to build your own architecture from scratch.

Deployment Instructions

Use Cases

  • Starting a new MDAA project from scratch and adding modules incrementally
  • Establishing governance foundations before deciding on a specific architecture
  • Learning MDAA with the simplest possible deployment

Capabilities

  • IAM role generation with CDK Nag compliance
  • Glue Catalog KMS encryption (account-level)
  • LakeFormation settings delegating access control to IAM (account-level)
  • Resource tagging for cost allocation and operational governance

Architecture

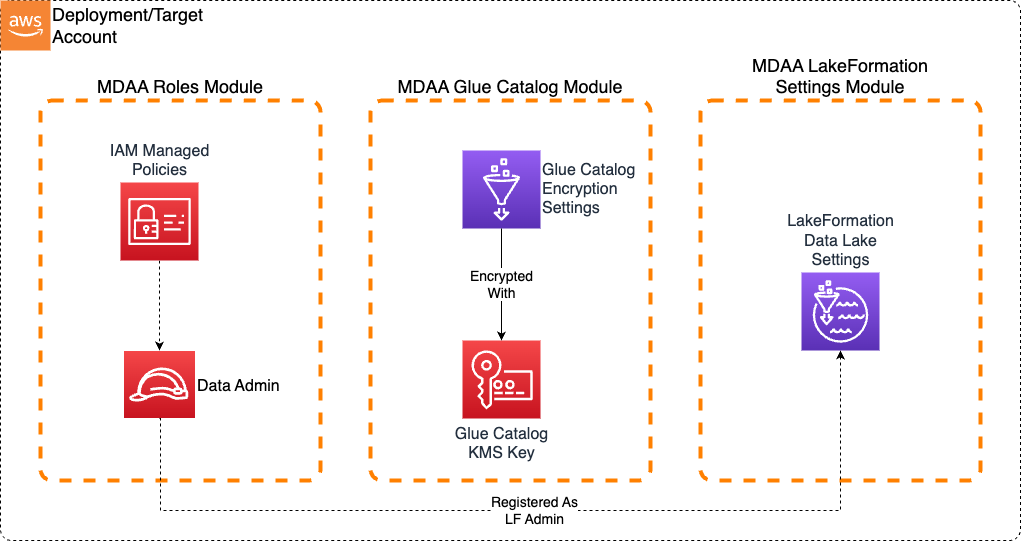

Minimal Starter Kit

Deployment

Prerequisites and Predeployment

  1. Authenticate to your target AWS account and region. Ensure the authenticated role has permissions to deploy resources via CDK.
  2. Bootstrap CDK in your target account and region.

Additional info: PREDEPLOYMENT

Configure MDAA

  1. Address all TODOs in mdaa.yaml, specifically:

    • Set organization to a globally unique name

  2. Address all TODOs in module configs, specifically:

    • CDK Nag suppressions in roles.yaml. Uncomment each suppression only after reviewing the associated permissions and confirming they are acceptable for your environment.

Deploy MDAA

Run the following from the starter kit directory (containing mdaa.yaml):

  1. Optionally, run npx @aws-mdaa/cli ls to understand what stacks will be deployed.

  2. Optionally, run npx @aws-mdaa/cli synth and review the produced templates.

  3. Run npx @aws-mdaa/cli deploy to deploy all modules.

Additional info: DEPLOYMENT

Next Steps

See USAGE.md for post-deployment verification and next steps.

Once deployed, extend your architecture by adding modules from the available modules catalog. Common next steps:

  • Add @aws-mdaa/datalake for S3 storage with encryption and access policies
  • Add @aws-mdaa/athena-workgroup for SQL querying
  • Add @aws-mdaa/dataops-project for ETL pipeline infrastructure

Modules Deployed

Module Purpose
@aws-mdaa/roles IAM roles and policies for the data environment
@aws-mdaa/glue-catalog Glue Catalog KMS encryption (account-level)
@aws-mdaa/lakeformation-settings LakeFormation IAM delegation (account-level)

Troubleshooting

  1. LakeFormation settings conflict: If LakeFormation settings have already been configured in the account (manually or by another deployment), the lakeformation-settings module may fail. Remove existing LakeFormation data lake administrators via the AWS Console before deploying.
